XLPE Insulated Power Cable YJV Copper 0.6/1kV Low Voltage Xlpe Cable
Product Summary
Product Details
XLPE Insulated Power Cable YJV
,Power Cable YJV Copper 0.6/1kV
,0.6/1kV Low Voltage Xlpe Cable
Product Description
YJV is a 0.6/1kV low-voltage copper core power cable with XLPE insulation and a PVC sheath, suitable for fixed installations. It is ideal for feeder and distribution lines in building, factory, utility, and infrastructure projects, meeting the demands for reliable performance and ease of sourcing.
If your Bill of Quantities (BOQ) requires a mainstream and easily inspectable low-voltage power cable, YJV is a safe choice. It is designed for stable low-voltage distribution, convenient installation on-site, and a stable supply of common core counts and cross-sectional dimensions.
Product Overview

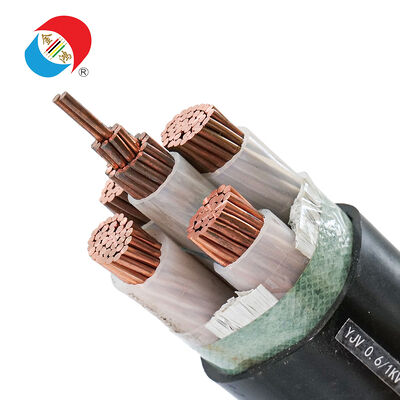

YJV is a low-voltage fixed-installation power cable typically featuring stranded copper conductors, XLPE insulation, and a PVC outer sheath. It is widely used in main feeders, branch feeders, and general distribution lines, meeting contractors' urgent needs for predictable pull performance, robust termination, and easy inspection and acceptance. For projects that do not require Low Smoke Halogen-Free (LSZH), fire integrity, or armoring, YJV is often selected as the high-efficiency benchmark.
Low Voltage Ratings
Applications of YJV
Common Applications
- Building main feeders, from transformer room or main distribution box (MDB) to switchboard
- Industrial plant power distribution for motors, pumps, HVAC, compressors, and utilities
- Commercial facilities, such as shopping malls, hotels, offices, warehouses, and workshops
- Infrastructure and municipal low-voltage networks where PVC sheathing is permitted
- Retrofitting and expansion projects requiring widely recognized low-voltage cable types
When to Choose Other Cables
- Mandatory low-smoke halogen-free requirements
- Emergency systems requiring fire-resistant circuit integrity
- Underground or high-mechanical-risk wiring requiring armored construction
- Applications requiring flexible cables for frequent movement or bending
Why Choose YJV for Your Project
Fast acceptance and familiar construction processes
YJV The product is widely specified and recognized, reducing disputes during material approval and on-site acceptance.
Stable Low-Voltage Electrical Performance
XLPE insulation ensures reliable dielectric performance in everyday low-voltage power distribution applications.
Advantages of Copper Conductors
Copper conductors help reduce losses and ensure consistent termination results when using standard fittings.
PVC Sheath Provides Practical Protection
PVC sheaths are suitable for normal installation wear and tear and daily field operations in typical environments.

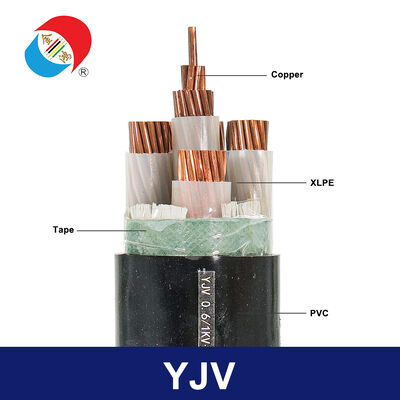

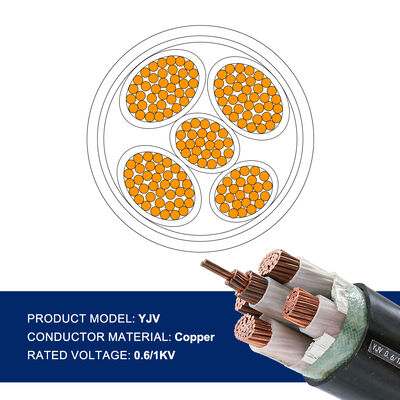

Structural Overview
Manufacturing Process Description
Copper Wire Drawing and Stranding
Copper wire is stranded to achieve the required resistance value and flexibility for easy pulling and wiring.
XLPE Insulation Extrusion and Cross-linking
The insulation layer is extruded and cross-linked to form a uniform insulation layer suitable for stable low-voltage applications.
Core Layup
Insulated cores are assembled using controlled geometry to improve roundness and reduce traction friction.
Sheath Extrusion and Printing
A polyvinyl chloride (PVC) sheath is applied for protection, followed by printing for identification and traceability.
Routine Quality Inspections
Typical inspections include conductor resistance, insulation thickness control, spark or voltage testing according to standards, dimensional inspection, and sheath integrity inspection.
Common Specifications Overview
Common Wire Quantities in Projects
| Wire Quantity | Description |
|---|---|
| 1-core | Single-core Feeder (Depends on Installation Specifications) |
| 2-core | Single-phase Circuit |
| 3-core | Three-phase Circuit without Neutral (Depends on Design) |
| 4-core | Three-phase Circuit with Neutral (Common Feeder Selection) |
| 5-core | Three-phase Circuit with Neutral and Protective Electrode (Depends on Design) |
Common Cross-sectional Dimensions (mm²)
| Dimensions (mm²) |
|---|
| 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 |
High Turnover Bill of Materials Combinations
| Combination |
|---|
| 3-core x 4 |
| 3-core x 6 |
| 3-core x 10 |
| 4-core x 10 |
| 4-core x 16 |
| 4-core x 25 |
| 4-core x 35 |
| 4-core x 50 |
| 5-core x 10 |
| 5-core x 16 |
| 5-core x 25 |
| 1-core x 70 |
| 1 core x 95 |
| 1 core x 120 |
| 1 core x 150 |
Specifications (can be copied directly)
Selection Guide
- Please confirm your required voltage rating project file (typically 0.6/1kV).
- Select the core count based on system design and neutral/protective conductor layout.
- Determine the cross-sectional dimensions based on current carrying capacity, distance, grouping, ambient temperature, and permissible voltage drop.
- Check wiring conditions and specify armored or low-smoke halogen-free (LSZH) cables only if required by the Bill of Quantities (BOQ).
- Plan the reel length to reduce joints and speed up installation.
Quick Inquiry Details (paste into the inquiry form)
Frequently Asked Questions
Question 1: What are the uses of YJV cables?
YJV cables are used for low-voltage applications. Suitable for feeder and distribution circuits in fixed installations in buildings, factories, and general infrastructure.
Q2: What is the voltage of YJV?
A: YJV is typically supplied at 0.6/1kV for low-voltage distribution systems.
Q3: Is YJV suitable for outdoor installation?
A: YJV is typically used in protected outdoor wiring and conduits. For harsh environments, direct burial, or high mechanical risks, specify the appropriate wiring configuration according to project standards.
Q4 How to choose between 4-core and 5-core cables?
4-core cables are typically used for three-phase circuits with a neutral conductor. 5-core cables are used in situations requiring a dedicated PE conductor. Please follow your design specifications and local regulations.
Q5 What are the most commonly used cable sizes in procurement?
A: Small circuits typically use 1.5 to 10 mm² cables, typical feeders use 16 to 50 mm² cables, while larger loads or long-distance lines typically use 70 to 300 mm² cables depending on voltage drop limitations.
Q6 What information can help you get a quote quickly?
A: Required standards, number of cores, size list, total meters, route type, destination, packaging preferences, and required documentation.
