Low-voltage cables are cables specifically designed for power systems. Their operating voltage typically does not exceed 0.6/1kV (1000V AC) for power distribution; or is below 50V for signal/communication applications. The specific voltage depends on the standard and application scenario. It consists of a conductor, insulation layer, and protective sheath, used to safely transmit power or signals.
Low-voltage cables are widely used in building power distribution (lighting, sockets), industrial equipment, home automation, data networks, security systems, and communication infrastructure—any application requiring low power or low signal transmission.
"Low-voltage cable" refers to AC cables with a rated voltage typically not exceeding 0.6/1kV, widely used in power distribution and light power services.
In electrical engineering, "low voltage" generally refers to the voltage used for power distribution, which can reach up to approximately 1000V AC or 1500V DC. However, some low-voltage applications operate at much lower voltages (e.g., signal and control circuits with voltages ≤50V).
Yes. In many regions, 120V is considered part of a low-voltage system according to electrical codes because it falls within the "low voltage" range of electrical circuits; however, it still requires proper installation and safety precautions, just like any main power line.
Low-voltage cables include power cables (used for building distribution), control cables, data/communication cables (e.g., Ethernet, coaxial cables), alarm/security cables, and instrument/signal cables—each type of cable is optimized for specific functions and environments.
Low-voltage cables typically use copper or aluminum conductors, with insulation made of PVC, XLPE, PE, or special low-smoke/halogen-free materials, depending on performance and fire safety requirements.
Low-voltage cables are designed for lower voltage applications (up to approximately 1kV) for local power distribution and equipment supply; while high-voltage cables carry much higher voltages (several kilovolts and above) for long-distance power transmission and heavy industrial power delivery.
Yes—because low-voltage cables operate at lower voltages (especially below 50V), the risk of electric shock and fire is lower, making them more suitable for consumer and signal-related applications.
Yes—although low-voltage cables carry lower voltages, proper installation, wiring, grounding, and compliance with local electrical and building codes are crucial to ensuring safety, performance, and reliability. The selection of conductors and insulation materials must be matched to the application and environmental conditions.
-
What is a medium-voltage cable?
Medium-voltage (MV) cable is a type of power cable designed to transmit electricity at voltages typically between 1kV and 35kV, bridging the gap between low-voltage and high-voltage systems in power distribution networks.
-
What are the uses of medium-voltage cables?
Medium-voltage cables are used to efficiently transmit power over medium distances, such as from substations to industrial facilities, commercial buildings, and renewable energy collection points.
-
What are the application areas of medium-voltage cables?
They are widely used in urban power distribution, industrial power systems, renewable energy projects, commercial power supply, underground infrastructure, and overhead distribution networks.
-
What is the difference between medium-voltage and low-voltage cables?
Medium-voltage cables have a higher design voltage rating (1-35kV) and, compared to low-voltage cables (typically up to 1kV), thicker insulation and a more robust structure, making them more suitable for carrying larger loads and longer transmission distances.
-
What are the main components of a medium-voltage cable?
Medium-voltage cables typically consist of a conductor (usually copper or aluminum), insulation (such as cross-linked polyethylene (XLPE)), shielding, and an outer sheath to ensure insulation, mechanical strength, and reliability.
-
What types of medium-voltage cables are there?
Common types include underground medium-voltage cables, overhead medium-voltage cables, armored or unarmored cables, single-core cables, and multi-core cables. Each type is suitable for specific environments and installation methods.
-
What materials are used for the insulation of medium-voltage cables?
The insulation materials for medium-voltage cables typically include cross-linked polyethylene (XLPE) and ethylene propylene rubber (EPR). These materials are chosen because of their high dielectric strength, heat resistance, and durability.
-
What standards do medium-voltage cables comply with?
The manufacture and testing of medium-voltage cables are carried out according to international standards (such as IEC 60502) and relevant regional standards to ensure safety, performance, and compliance.
-
Can medium-voltage cables be used underground?
Yes—medium-voltage cables can be laid underground, in conduits, or directly buried, and can also be used for overhead lines, depending on project requirements and environmental conditions.
-
How do medium-voltage cables affect power system reliability?
Medium-voltage cables play a crucial role in ensuring the stable and reliable operation of power systems. They reduce energy loss, safely carry higher loads, and connect power sources to distribution networks.
Industrial power cables are heavy-duty cables designed to deliver power in harsh industrial environments where standard household cables cannot operate. These cables feature reinforced conductors, special insulation, and a robust outer sheath, resisting high temperatures, oil, chemicals, abrasion, UV radiation, and mechanical stress.
Industrial power cables include:
- Standard power cords
- High-flexibility cables and drag chain cables
- Shielded power cords for electromagnetic interference (EMI) protection
- High-temperature cables
- Oil and chemical corrosion resistant cables
- Halogen-free (LSZH) cables for safety-critical applications
Industrial power cables are specially designed to withstand extreme environmental conditions such as vibration, repeated bending, oil/chemical corrosion, and extreme temperatures, while ordinary power cords are primarily used in light and controlled environments.
Key factors include rated voltage and current, insulation material, sheath durability (e.g., oil or chemical resistance), required flexibility, temperature range, electromagnetic interference shielding, and compliance with safety standards.
Industrial power cables are used to power industrial automation systems, CNC machine tools, robots, conveyors, pumps, motors, welding equipment, packaging machinery, and outdoor power distribution systems in factories.
Conductors are typically copper or aluminum. Insulation materials include cross-linked polyethylene (XLPE), thermoplastic elastomer (TPE), or heat-resistant silicone. Sheaths may be made of polyvinyl chloride (PVC), polyurethane (PUR), or low-smoke halogen-free (LSZH) compounds to meet specific environmental protection requirements.
Rated voltage defines the highest voltage a cable can safely carry. In industrial environments, cables with a rated voltage higher than the maximum operating voltage must be selected to avoid overheating and failure.
Yes, outdoor industrial power cables feature weather-resistant sheaths and UV-resistant insulation, enabling them to withstand various environmental corrosions. However, you must select the appropriate cable based on the installation conditions.
High-flexibility power cables use finely stranded conductors and flexible sheaths, capable of withstanding continuous movement and millions of bending cycles, making them suitable for applications such as robotic arms and automated machinery.
Yes. Industrial power cables typically need to comply with UL, CSA, ISO, REACH, RoHS, and other regional safety and environmental standards to ensure their performance, reliability, and compliance.
1. What is armored cable?
An armored cable is a type of power cable that has an additional metallic protective layer (armor layer) wrapped around its core conductor. It is typically made of steel or aluminum to enhance mechanical protection and durability.
2. Why use armored cables?
Armored cables are designed to protect against mechanical damage, moisture, impact, rodents, and harsh environmental conditions, making them ideal for rough and exposed installation environments.
3. Where are armored cables typically used?
They are commonly used in underground power distribution, industrial facilities, commercial buildings, basements, and outdoor locations requiring extra protection.
4. What types of armored cables are there?
Common types include:
- SWA (Steel Wire Armored) – Heavy Duty Protection
- AWA (Aluminum Wire Armored) – Light Duty Protection
- STA (Steel Tape Armored) – Steel Tape Wrapped Armor
5. Can I lay armored cables myself?
While experienced DIY enthusiasts can perform basic installations, it should generally be installed by a qualified electrician to ensure safety, proper grounding, and compliance with local electrical codes. (General Electrical Practices; consult local regulations)
6. Why are armored cables typically not used for residential wiring?
Armored cables are heavier, less flexible, and more expensive than standard household cables. Residential circuits typically use unarmored cables (such as NM/Romex cables) or conduit systems because these are easier and less expensive to install. (Industry wiring codes)
7. Do armored cables need to be grounded?
Yes—the metal armor typically acts as a grounding loop or must be connected to a grounding conductor to safely clear faults and reduce the risk of electric shock.
8. Are armored cables suitable for underground burial?
Yes—one of the primary uses of armored cables is direct burial in the ground or within conduits, where mechanical protection is crucial against soil pressure and damage.
9. What is the rated voltage of armored cables?
Armored power cables are available in various voltage ratings, commonly including low-voltage (e.g., 0.6/1kV) cables for general power distribution and medium-voltage cables for industrial applications.
10. How to Choose the Right Armored Cable?
When selecting the right armored cable, consider the environment (indoor/outdoor/underground), mechanical stress, rated voltage, conductor size, and compliance with local standards to ensure safety and a long service life.
-

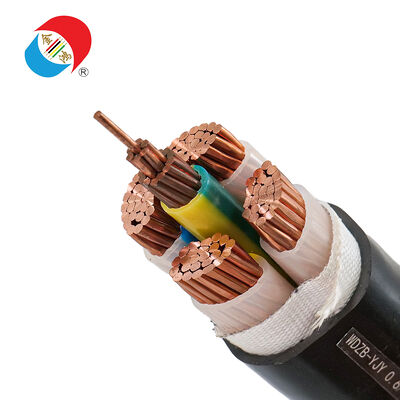

What is a Low Smoke Halogen-Free (LSZH) Cable?A low smoke halogen-free (LSZH) cable is a cable with minimal insulation and sheathing material that does not produce halogen gases (such as chlorine or bromine) when exposed to fire, thus reducing the emission of toxic and corrosive substances.
-
What does LSZH stand for?LSZH stands for Low Smoke Halogen-Free, referring to a cable that produces very little smoke and no halogen compounds when burning, thereby improving safety in fire situations.
-
In what applications are low smoke halogen-free cables suitable?LSZH cables are suitable for locations with extremely high fire safety requirements, such as public buildings, transportation systems, data centers, hospitals, tunnels, and industrial facilities, to protect personnel and equipment from toxic fumes and corrosion in fires.
-
What is the difference between LSZH and LSOH cables?LSZH and LSOH are often used interchangeably—both refer to cables that produce low smoke and no halogens when burning. The main differences lie in the naming conventions used by different regions or manufacturers, but their core safety characteristics are the same.
-
What are the uses of LSZH cables?Compared to standard PVC cables, LSZH cables can reduce fire hazards, improve visibility during evacuation, protect human health from toxic gases, and prevent corrosive damage to sensitive electronic equipment.
-
What is the difference between LSF and LSZH cables?LSF (Low Smoke Halogen-Free) cables produce less smoke than PVC cables, but may still release halogens or other harmful compounds. LSZH cables, on the other hand, are completely halogen-free and produce very little smoke and toxic gases when heated or burned.
-
Why are low smoke halogen-free cables crucial for fire safety?Because low smoke halogen-free cables produce less smoke when burning, resulting in higher visibility and no release of toxic halogens, they help protect the safety of personnel and rescue workers in fire emergencies, especially in confined spaces.
-
Are low smoke halogen-free cables environmentally friendly?Yes—low-smoke halogen-free cables contain no halogens and do not release corrosive gases when burned. Therefore, they are more environmentally friendly and easier to dispose of safely compared to traditional halogen-containing cables.
-
Do low-smoke halogen-free cables meet safety standards?The materials and products of low-smoke halogen-free cables are tested according to international standards (such as IEC, EN, UL). These standards measure smoke emissions, toxicity, and flame retardancy to ensure reliable fire safety performance.
-
What are some common applications of low-smoke halogen-free cables?Common applications include office buildings, shopping malls, airports, railway and subway networks, hospitals, schools, data centers, ships, and other densely populated or enclosed spaces where fire safety and visibility of evacuation are primary considerations.
-
What is a fire-resistant cable?
A fire-resistant cable is a specially designed cable capable of withstanding high temperatures in a fire and maintaining circuit integrity for a specific period, thus ensuring the continued operation of critical systems such as emergency lighting, alarms, or fire pumps in a fire environment.
-
What is the difference between fire-resistant cables and flame-retardant cables?
Fire-resistant cables are designed to maintain normal circuit operation for a specific period in a fire, while flame-retardant cables are designed to reduce the spread of flames along the cable surface, but may not be able to keep the circuit energized during a fire.
-
What is the difference between FR cables and FRLS cables?
FR (fire-resistant) cables are tested to remain operational in a fire. FRLS (fire-resistant low-smoke) cables refer to fire-resistant cables with low smoke emissions when burning, thereby improving visibility and safety. (In contrast, FRLSH cables, in addition to low smoke and halogen-free characteristics, also possess low smoke characteristics.)
-
Are armored cables fire-resistant?
Armored cables have mechanical protection (metal armor), but unless specifically manufactured and tested according to fire-resistant standards, they are not inherently fire-resistant. Standard armored cables can still experience electrical failures in a fire.
-
Are Low Smoke Halogen-Free (LSZH) cables fire-resistant?
Low Smoke Halogen-Free (LSZH) cables reduce smoke and toxic gases in a fire, but they are not inherently fire-resistant unless specifically designed and fire-tested. LSZH cables focus on emission reduction, not circuit integrity under fire.
-
What materials make fire-resistant cables special?
Fire-resistant cables typically consist of a mica tape layer, a fire-resistant insulation layer (such as cross-linked polyethylene (XLPE)), and a protective sheath. These materials help them withstand high temperatures and continue transmitting power or signals in a fire.
-
How long can fire-resistant cables continue to function in a fire?
Fire-resistant cables, under standard fire-testing conditions, must undergo circuit integrity testing for specific time periods (e.g., 30, 60, 90, 120 minutes) until failure. The specific duration depends on the cable design and applicable standards.
-
In which fields are fire-resistant cables typically used?
They are commonly used in emergency systems such as fire alarm systems, smoke extraction systems, emergency lighting systems, fire pumps, evacuation systems, high-rise buildings, hospitals, tunnels, and critical infrastructure, where maintaining electrical continuity during a fire is crucial.
-
What standards do fire-resistant cables comply with?
Fire-resistant cables are tested according to standards such as IEC 60331, BS 6387, and EN 50200, and related tests. These standards specify the fire resistance and circuit integrity of the cables.
-
Can cables possess both fire resistance and low-smoke halogen-free characteristics?
Yes—some fire-resistant cables are manufactured using low-smoke halogen-free (LSZH) materials, combining circuit integrity in a fire with low smoke and halogen-free emissions, making them ideal for life safety applications in enclosed spaces.
-
What are aluminium cables used for?Aluminium cables are widely used in electrical power transmission and distribution systems, especially in overhead power lines, large‑scale power networks, and infrastructure projects, because aluminium is lightweight, corrosion‑resistant, and cost‑effective.
-
Is aluminium cable better than copper cable?Neither is universally “better"—each has pros and cons. Aluminium is lighter and more cost‑effective, making it suitable for long lines and large‑scale projects, but copper has higher electrical conductivity and mechanical strength, often providing greater efficiency and reliability in many applications.
-
Are aluminium cables safe?Modern aluminium cables are safe when properly designed, sized, and installed, but because aluminium has different mechanical and thermal properties than copper, they must be correctly connected and protected to avoid loosening, overheating, or other safety issues.
-
Why use aluminium instead of copper in power cables?Aluminium is used because it is significantly lighter and less expensive per unit length, which reduces transport and installation costs, and its oxide layer provides good corrosion resistance—especially beneficial in overhead and large‑scale power distribution.
-
What are the drawbacks of aluminium cables compared to copper?Aluminium has lower electrical conductivity and mechanical strength than copper, so cables must be larger in cross‑section for the same current, and connections may need special treatment to prevent oxidation and loosening over time.
-
Can aluminium cables be used for household wiring?Aluminium wiring has been used historically, especially in older installations, but special precautions are required for building wiring due to its tendency to expand/contract and potential connection issues—consult codes and professionals before use.
-
Do aluminium power cables need a larger cross‑section than copper cables?Yes. Because aluminium’s conductivity per unit area is lower than copper’s, aluminium conductors typically require a larger cross‑section (about 1.5* or more) to carry the same current safely.
-
What are common types of aluminium power cables?Common types include aluminium conductor power cables with XLPE insulation, armoured aluminium cables for mechanical protection, and ACSR (aluminium‑conductor steel‑reinforced) for high‑capacity overhead lines.
-
How does aluminium’s weight compare to copper in cables?Aluminium is much lighter—about one‑third the weight of copper for a similar design—making it easier to handle and less costly to transport and install in long runs.
-
In what applications is aluminium cable especially advantageous?Aluminium cables are especially advantageous in high‑voltage overhead transmission, long‑distance distribution, utility networks, and budget‑sensitive infrastructure projects where weight and cost savings matter most.
1. What is an ABC cable?
ABC cable, or overhead bundled cable, is a type of overhead power cable that bundles multiple insulated conductors together, typically supported by a pole, instead of using bare, uninsulated conductors. This design improves safety and reliability compared to traditional overhead lines.
2. What does ABC mean in the electrical field?
In the electrical field, ABC stands for overhead bundled cable, referring to an overhead distribution cable where the phase conductors are insulated and bundled together to reduce faults and improve safety.
3. What is an overhead cable?
Overhead cable refers to any power or communication cable installed on a utility pole for long-distance power or data transmission without underground laying.
4. What is a low-voltage ABC cable?
Low-voltage ABC cable (low-voltage overhead bundled cable) refers to a low-voltage ABC cable used for power distribution at voltage levels typically not exceeding 1kV, making it suitable for residential and urban power grids.
5. What are the main types of ABC cables?
ABC cables mainly include:
- Low-voltage ABC cables (≤1kV), used for local power distribution
- Medium-voltage ABC cables (above 1kV to tens of kV), used for larger power distribution needs
- Based on the number of bundled conductors, they are divided into single-core and multi-core types.
6. Why use ABC cables instead of traditional bare overhead conductors?
ABC cables use insulated conductors, significantly reducing the risk of short circuits, electric shocks, and power outages caused by contact with trees, animals, or wind-driven objects—problems common with bare conductors.
7. What materials are ABC cables made of?
ABC cables typically use aluminum or aluminum alloy conductors for good conductivity and lighter weight, and use insulation materials such as cross-linked polyethylene (XLPE) to resist UV radiation, moisture, and various weather conditions.
8. Where are ABC overhead cables typically used?
They are widely used in residential and urban power distribution, rural electrification, street lighting, industrial power supply, and other overhead line applications requiring safer and more efficient power transmission.
9. What are the advantages of ABC overhead cables?
Compared to traditional exposed overhead lines, ABC cables offer higher safety, higher reliability, lower power loss, lower maintenance costs, easier installation, and superior performance in harsh weather conditions.
10. How to choose the right ABC cable?
Choosing the right ABC cable depends on the voltage rating, current capacity, environmental conditions, insulation quality, and relevant standards applicable to your specific power distribution project.
-

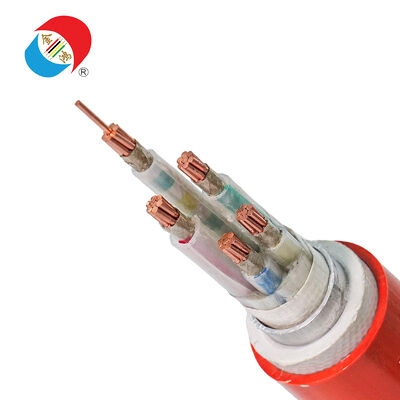

What are Specialty Cables?Cable Supplier
Specialty cables (or special-purpose cables) are power or communication cables designed specifically for particular applications or extreme environments, possessing unique structural and performance characteristics, and differing from standard general-purpose cables.
-
What is the difference between specialty cables and ordinary cables?Weidong Cable
Specialty cables are designed to withstand harsh or challenging conditions (e.g., extreme temperatures, chemical corrosion, mechanical stress), while ordinary cables are suitable for general electrical applications that meet standard requirements.
-
What makes a cable a "specialty cable"?Authoritative Power Cable Portal, gathering comprehensive information on cable manufacturers, market trends, technical specifications, and product prices.
A cable is considered a specialty cable when it possesses unique or enhanced properties not found in standard cables, such as fire resistance, corrosion resistance, high-temperature resistance, low noise, or excellent flexibility.
-
What are some common types of specialty cables?
Specialty cables include, but are not limited to:
- High-temperature cables
- Low-smoke zero-halogen (LSZH) cables
- Fire-resistant cables
- Oil-resistant or chemically resistant cables
- Radiation-resistant or low-noise signal cables
- Flexible cable chains and robot cables
(Examples based on typical industry categories.) [Authoritative power cable portal, gathering comprehensive information on cable manufacturers, market trends, technical specifications, and production prices]
-
Where are specialty cables typically used?[Authoritative power cable portal, gathering comprehensive information on cable manufacturers, market trends, technical specifications, and production prices]
Widely used in power plants, aerospace, military equipment, petrochemical plants, rail transportation, submarines and offshore platforms, or other environments where ordinary cables cannot operate reliably.
-
Why are specialty cables more expensive than standard cables?KUKA Cables
Specialty cables often use advanced materials, strict manufacturing processes, and customized designs, resulting in higher technical content, stricter performance requirements, smaller production batches, and higher added value than ordinary cables.
-
Can special cables be customized?OWCable
Yes – Specialty cables are typically custom-made to meet specific application environmental conditions or performance requirements (e.g., temperature range, chemical exposure, mechanical stress, or safety standards).
-
Do specialty cables require special installation methods?
Depending on the application and environment, specialty cables may require specialized installation techniques, protective wiring, or additional hardware to ensure optimal performance and extended service life. (Industry common practice)
-
Do specialty cables need to meet specific standards and certifications?
Yes – Many specialty cables must meet industry or regional safety and performance standards, such as UL, IEC, EN, or industry-specific certifications, to ensure they meet required fire, environmental, or electrical standards. (General cable standards)
-
How do I choose the right specialty cable for my project?
To make the right selection, consider the operating environment, expected stress (temperature/chemicals/humidity), electrical requirements (voltage/current), and relevant safety standards for your industry or application. (General engineering selection standards)
Solar cables, also known as photovoltaic (PV) cables, are specialized cables designed specifically for solar photovoltaic systems. They are used to connect solar panels, inverters, batteries, and other components, ensuring efficient and safe power transmission.
Solar systems use photovoltaic cables. Their insulation is UV-resistant and weatherproof, capable of withstanding direct current (DC) and outdoor environmental conditions—unlike ordinary cables.
Solar cables are specially designed with UV resistance, extreme temperature resistance, moisture resistance, weather resistance, and a long lifespan (typically exceeding 25 years), features lacking in ordinary cables.
Common types of solar cables include:
- Single-core DC cables for connecting photovoltaic modules
- Solar extension cables with connectors
- Battery and inverter cables for energy storage and AC connections
- Voltage ratings are available depending on system scale, such as 600/1000/1500V DC.
The appropriate cable size depends on the current, voltage, and distance of the solar line—a larger size (e.g., 6mm²) can reduce voltage drop over long distances, while a smaller size (e.g., 4mm²) may be sufficient for short distances and low current loads.
Solar cables typically use tinned copper conductors, which have excellent conductivity and corrosion resistance, and cross-linked insulation to enhance their UV resistance and high-temperature performance.
Solar cables are rated for DC voltages of 600V, 1000V, or 1500V. Higher rated voltages ensure the safety of large solar arrays and reduce line losses.
Yes—solar cables are designed for outdoor environments and can withstand UV radiation, humidity, high temperatures, low temperatures, and other extreme weather conditions without performance degradation.
MC4 connectors are standard plug-and-play connectors commonly used on solar cables. They easily connect solar panels in series or parallel and provide a safe, waterproof connection in photovoltaic systems.
When selecting a solar cable, consider the rated voltage, current carrying capacity, UV resistance/weather resistance, insulation type, system design requirements, and compliance with safety certification standards to ensure long-term safety and performance.
A power cable is a cable specifically designed for transmitting and distributing electrical energy. It consists of one or more insulated conductors encased in a protective sheath, used for the safe transmission of electricity over long distances.
Power cables are often simply called power lines, cables, or power cables—they are cables used to transmit electrical energy from a power source to the electrical systems of equipment, infrastructure, machinery, or buildings.
A power cord typically refers to a flexible cable with connectors used to connect equipment or appliances to a power outlet; while a power cable typically refers to any cable used for permanent or fixed power distribution within a system or network.
Power cables can be classified by voltage level or structure:
- Low-voltage (LV) cables, for residential/commercial use;
- Medium-voltage (MV) cables, for industrial power distribution;
- High-voltage (HV) cables, for long-distance power transmission;
Some special types include armored cables, flexible cables, and submersible cables.
Power cable conductors are typically made of copper or aluminum, chosen primarily for their conductivity and cost; the insulation layer uses polyvinyl chloride (PVC), cross-linked polyethylene (XLPE), or other materials to provide electrical and environmental protection.
Power cables are widely used in residential wiring, commercial buildings, industrial plants, underground power grids, overhead transmission lines, renewable energy systems, and infrastructure such as railways and airports.
Choosing the right power cable depends on voltage requirements, current carrying capacity, environmental conditions (underground, outdoor), insulation type, and mechanical protection requirements.
Yes—Power cables can be laid underground or overhead, depending on design, environmental factors, and application. Underground cables typically require additional protection, while overhead lines may have a simpler structure.
• Low-voltage power cables operate at voltages below approximately 1kV and are commonly found in buildings and local power distribution.
• High-voltage power cables are designed to transmit voltages of several kilovolts or higher and are used in power grids and long-distance power distribution.
Yes—Flexible power cables or cables use flexible conductors and insulation layers, allowing them to bend and move without damage; these cables are commonly used in portable equipment, machinery, and temporary connections.
1. What are building wirings in a house?
Building wiring refers to insulated conductors permanently installed inside a building (such as in walls, ceilings, and floors) to deliver electricity to light fixtures, outlets, and appliances.
2. What types of wiring are used in residences?
Residences typically use low-voltage insulated wiring, such as non-metallic sheathed cables (NM-B/Romex), THHN/THWN cables in conduits, and sometimes underground feeders (UF) for outdoor lines.
3. What materials are building wirings made of?
Building wiring most commonly uses copper or aluminum conductors with a durable insulation layer (usually PVC or cross-linked polyethylene) to ensure safe conductivity.
4. Why is insulation important for building wiring?
Insulation prevents electric shock, short circuits, and fire hazards by isolating and protecting live conductors, which is crucial for the safety of household electrical systems.
5. What types of building wiring are commonly used in residences?
Common types include:
• NM-B (Romex) cable for general indoor circuits
• THHN/THWN single-core wire for conduit installation
• UF-B cable for underground or outdoor installations
• Armored or metal-sheathed cables for applications requiring additional protection.
6. What gauge building-grade wiring should be used for outlets and lighting?
Typical household lighting circuits use 14AWG wire, and standard outlets use 12AWG wire; larger appliances may require thicker wire. (Note: Specific gauge requirements vary by local regulations.)
7. Can aluminum wire be used for residential building wiring?
Yes—aluminum wire is used in residential wiring, especially in larger feeder circuits, but it must be installed correctly with compatible connectors because aluminum and copper have different properties.
8. What is NM (Romex) cable?
NM cable (non-metallic sheath) is a common type of residential building wiring with multiple insulated conductors and a plastic sheath, widely used in indoor branch circuits. 9. What is the lifespan of building electrical wiring?
9. What is the lifespan of building electrical wiring?
Building electrical wiring installed according to specifications and properly protected can operate safely for decades under correct usage conditions, typically matching the lifespan of the building, with minimal performance degradation.
10. How do I choose the right building electrical wiring for my home?
When selecting building electrical wiring, consider load capacity (amperes), rated voltage, insulation type, installation method (in-wall, conduit, outdoor), and local electrical codes to ensure safety and compliance.
-
What are wires and cables in electrical systems?
In an electrical system, a wire is a single conductor (usually copper or aluminum) used to carry current, while a cable consists of multiple insulated conductors bundled together and encased in a protective outer sheath.
E-Abel -
What is a cable called?
A cable is made of multiple insulated conductors (wires) bundled together and encased in a protective outer sheath, used to safely transmit electrical power or signals.
EWCS Wires -
What conductors are used in cables?
The most commonly used conductor materials in cables are copper and aluminum because of their excellent electrical conductivity and mechanical properties.
EWCS Wires -
What are the three main types of wires?
Common wire types include:
- Bare wire (no insulation layer)
- Insulated wire (single conductor with insulation layer)
- Shielded wire (with an additional shielding layer to prevent interference)
Cable Supplier -
What are the most common types of cables?
Common cable types include THHN, XHHW, UF (underground feeder), NM-B (non-metallic cable), and MC (metallic armored cable), used to meet specific wiring needs.
EWCS Cables -
What is the difference between a wire and a cable?
A wire is a single conductor, while a cable consists of two or more conductors bundled together and protected and reinforced with insulation and an outer sheath.
igus® Engineer's Toolbox -
How to choose the right wire or cable?
Key factors include rated current, voltage rating, insulation type, environmental conditions (indoor/outdoor), flexibility, and compliance with safety standards.
McCoy Mart -
What is the function of cable insulation?
Insulation prevents leakage, prevents short circuits, and ensures safety by isolating the conductor from other components and the user.
McCoy Mart -
Can cables be used outdoors?
Yes, but you must choose cables specifically designed for outdoor use with weather-resistant, UV-resistant, and moisture-proof sheaths.
Macoy Supermarket -
What standards and ratings should cables meet?
To ensure safe operation, wires and cables must generally meet national and international voltage, insulation, and performance safety standards (such as UL and IEC standards).
-
What is a rubber-sheathed cable?
A rubber-sheathed cable is a flexible cable whose conductor (usually multi-strand copper wire) is wrapped with a rubber insulation layer and a rubber sheath. It offers high flexibility and mechanical protection, suitable for both indoor and outdoor environments.
-
What are the applications of rubber cables?
Due to their flexibility and durability, rubber-sheathed cables are widely used in mobile power lines, electrical equipment, household appliances, electromechanical equipment, welding equipment, submersible motors, and portable tools.
-
What is the difference between rubber cables and PVC cables?
Rubber cables offer greater flexibility, better bending performance, and temperature resistance, while PVC cables are generally more economical and rigid. Rubber cables are more suitable for portable or heavy-duty applications, while PVC cables are commonly used for fixed installations.
-
What are the main types of rubber-sheathed cables?
Based on the required mechanical stress, rubber-sheathed cables are classified into light-duty, medium-duty, and heavy-duty types, with applications ranging from small household appliances to heavy industrial equipment.
-
What materials are used in rubber-sheathed cables?
The conductor typically uses stranded copper wire for flexibility; the insulation and sheath are made of rubber compounds such as natural rubber, EPDM, neoprene, or synthetic rubber blends tailored to environmental and performance requirements.
-
Can rubber-sheathed cables be used outdoors?
Yes—Rubber-sheathed cables are designed to withstand outdoor environments, including moisture, extreme temperatures, and physical stress, making them suitable for both indoor and outdoor applications.
-
Are rubber-sheathed cables flexible?
Yes—One of the main advantages of rubber-sheathed cables is their excellent flexibility and bending performance, allowing them to withstand frequent movement and simplifying installation.
-
What is the rated voltage of rubber-sheathed cables?
Rubber-sheathed cables are typically used in low-voltage applications (usually below 750V or 450/750V, depending on the standard and model) for power lines and equipment wiring.
-
How to choose the right rubber-sheathed cable?
When selecting rubber-sheathed cables, rated voltage, current carrying capacity, flexibility requirements, environmental exposure (oil, UV radiation, weather), and the mechanical load of the specific application should be considered.
-
What are some common rubber-sheathed cable models?
Common rubber-sheathed cable models include YZ, YZW, YC, YCW, YQ, JHS, YH, MY, MYP, and MC. These models indicate cable characteristics such as load rating, material, and specific application (e.g., welding or mining).

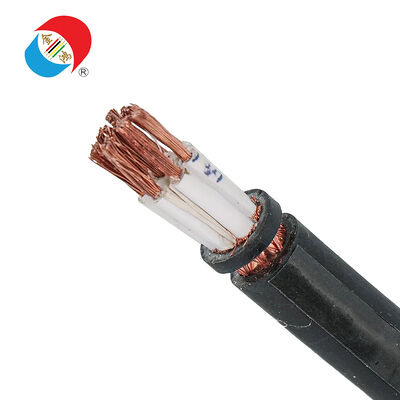

A control cable is a cable used in industrial and automation systems to transmit control signals, measurement data, protection commands, and automation instructions between equipment, machines, or control panels. It typically has multiple insulated cores and may include a shielding layer to reduce interference.
Control cables are widely used in industrial automation, robotic systems, PLC control panels, mechanical equipment, elevators, fire alarm systems, and building control networks to ensure accurate signal communication and coordinated operation.
Control cables transmit low-voltage control signals and data and typically have multiple cores and a shielding layer; power cables, on the other hand, transmit high current and are used to drive mechanical and electrical equipment. Therefore, their structure, insulation, and application requirements differ.
Control cables transmit electrical signals from control devices (such as sensors or PLCs) to other devices (such as motors or relays). These signals indicate when equipment starts/stops, changes settings, or sends operational feedback, ensuring automated and coordinated operation.
Common control cables include:
- YY cable – Unshielded flexible control cable
- CY cable – Shielded, for protection against electromagnetic interference
- SY cable – Steel wire braided armor, for mechanical protection
- Flexible cables and drag chain cables for dynamic motion applications
Yes – Control cables typically include a shielding layer (such as a copper braid or copper foil) to prevent electromagnetic interference (EMI), ensuring accurate and stable signal transmission in noisy industrial environments.
Control cables typically use finely stranded copper conductors for flexibility, PVC or PE insulation for electrical protection, and may include shielding materials and a protective outer sheath for improved environmental durability.
Control cables typically operate at low voltages (usually around 450/750V) and are designed for signaling and control applications, unlike power cables which typically withstand higher voltages.
Flexibility allows control cables to be installed in confined spaces, mobile machinery, cable chain systems, and robotic applications without damage, making them ideal for dynamic and automated environments.
To choose the right control cable, consider the following factors: conductor count, shielding requirements, environmental conditions (temperature, oil, humidity), required flexibility, and compliance with the electrical standards applicable to the control system.
-
What is a mineral-insulated cable?
Mineral-insulated cable (MI cable) is a special type of cable whose conductor is embedded in an inorganic mineral insulation layer (magnesium oxide) and encased in a seamless metal sheath, providing superior fire resistance, heat resistance, and mechanical protection.
-
What are mineral-insulated cables used for?
MI cables are used in applications requiring extremely high fire safety, heat resistance, and circuit integrity, such as fire alarm systems, emergency lighting, fire pumps, smoke extraction systems, industrial furnaces, nuclear facilities, and critical power/control circuits.
-
What is the difference between mineral-insulated cables and ordinary insulated cables?
Mineral-insulated cables use an inorganic mineral insulation layer (MgO) and a metal sheath, giving them superior fire resistance, high-temperature resistance, and mechanical properties; while ordinary insulated cables use organic polymers (such as PVC/XLPE), which have lower fire resistance and heat resistance.
-
When should MI cables be used?
MI cables should be used in fire-resistant, high-temperature, or hazardous environments, such as high-rise buildings, tunnels, petrochemical plants, and emergency systems, where ordinary cables may fail under extreme conditions.
-
What is a MI cable?
"MI" cable refers to mineral-insulated (MI) cable, sometimes also called mineral-insulated metal-sheathed (MIMS) cable. Its conductor is insulated with compacted mineral powder and protected by a metal sheath.
-
What are the advantages of mineral-insulated metal-sheathed cables?
Compared to traditional cables, MI cables offer superior fire resistance, high-temperature resistance, long service life, corrosion resistance, extremely low smoke/toxic substance emissions, and strong mechanical protection.
-
What are the three types of cable insulation?
Cable insulation can be broadly classified into organic polymer insulation (PVC, PE, XLPE), inorganic mineral insulation (MgO in MI cables), and rubber/elastomer insulation—each insulation material has different heat resistance, fire resistance, and environmental performance. (General classification of cable insulation)
-
What materials are MI cables made of?
MI cables typically consist of copper or alloy conductors, a magnesium oxide (MgO) mineral insulation layer, and a metallic outer sheath (copper or stainless steel), providing heat resistance, fire resistance, and mechanical resistance.
-
In which situations are MI cables prohibited?
MI cables are not suitable for applications involving repeated bending or vibration, such as connections to moving machinery, as their rigid structure may crack or break under repeated movement. (Based on installation practices—e.g., the flexibility requirements versus the characteristics of rigid MI cables)
-
What are the four types of cables?
Cables are generally classified into power cables, control cables, communication/data cables, and special/insulated cables (e.g., MI cables, fire-resistant cables, armored cables)—each type is designed for its electrical or environmental function. (Based on industry-standard cable classification)
A VFD cable (Variable Frequency Drive cable) is a specially designed cable used to connect a VFD (Variable Frequency Drive) and an AC motor, transmitting power in systems where the drive changes the motor's speed and torque. It reduces electrical noise and copes with the complex electrical environment introduced by VFD switching.
A VFD (Variable Frequency Drive) is a device that controls the speed and torque of an AC motor by changing the power supply frequency and voltage. It can improve the energy efficiency and motor performance of equipment such as pumps, fans, conveyors, and HVAC systems.
When a system includes a VFD-driven AC motor, especially in industrial environments, VFD cables should be used to cope with high-frequency switching, reduce electromagnetic interference (EMI), and protect equipment from voltage spikes. Standard motor cables may not be able to withstand these electrical stresses.
Variable frequency drive (VSD) cables refer to cables for variable frequency drives. They are essentially the same type of cable as variable frequency drive (VFD) cables—both are used to connect variable frequency/variable speed drives and motors, providing reliable power transmission while reducing electromagnetic interference (EMI).
Yes—Most three-phase AC motors, provided their rated power is appropriate, can be used with a VFD. However, the motor insulation and cable system must be able to withstand the pulse width modulation (PWM) switching and voltage spikes commonly found in VFD outputs.
Yes—VFD cables can be laid in conduits, but proper grounding and shielding measures must be followed to reduce EMI and maintain the electrical performance of the system. Using conduits also provides physical protection for the cables.
Some common drawbacks of variable frequency drives (VFDs) include electromagnetic interference (EMI/RFI), potential harmonic distortion, higher initial cost, and the need for dedicated cabling and grounding to maintain system reliability. Standard cables may not perform optimally without proper shielding.
Most industrial VFDs are designed for three-phase input power because they typically drive three-phase AC motors; however, single-phase VFDs are also available for small motors or light-duty applications.
Yes—in typical VFD operation, the AC input is rectified to DC and then inverted to a variable-frequency AC output to control the motor's speed and torque.
Common problems include electromagnetic interference (EMI), voltage spikes, cable overheating, motor insulation stress, grounding issues, reflected waves in long-distance cable transmissions, and harmonic distortion if the system is poorly designed or shielded.
