Durable YJV22 MV Cable Trusted Copper Core Solution Secure Power Distribution Worldwide
Product Summary
Product Details
Secure Power YJV22 MV Cable
,Copper Core YJV22 MV Cable
,Power Distribution YJV22 MV Cable
Product Description

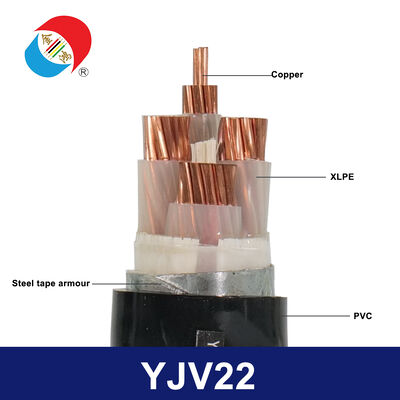

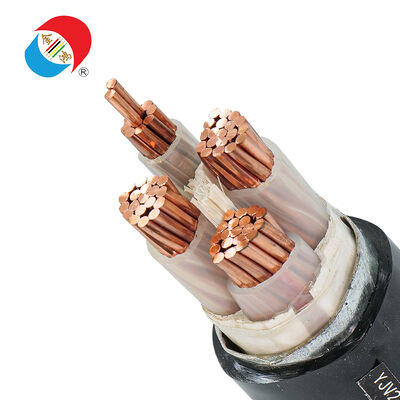

Featuring high-quality oxygen-free copper conductors and No. 22 double-layer steel tape armor, it provides stable transmission lines from 3.6/6kV to 26/35kV. It boasts superior resistance to impact, pressure, rodents, and corrosion, with a service life exceeding 30 years. Ideal for direct burial, mining, oil and gas, high-speed rail, and industrial applications. Certified by IEC, CE, SASO, KEBS, and INMETRO. Global fast delivery (2-7 days), flexible minimum order quantities, and 24/7 technical support—your trusted global power partner.
- Medium Voltage Range: YJV22 is designed for 3.6/6kV, 8.7/10kV, 18/30kV, and 26/35kV systems, meeting the high mechanical and electrical requirements of power transmission in harsh environments.
- 22# Armor Protection: Double-layer galvanized steel tape armor provides superior mechanical strength, resisting soil pressure, construction impacts, and rodent bites during installation, allowing for safe direct burial without additional protection.
- Oxygen-Free Copper Advantages: High conductivity (≥58 MS/m) ensures minimal energy loss and rapid heat dissipation, enabling stable operation even in high-temperature industrial environments (up to 90℃ long-term).
- Voltage Rating Matching Guidelines: 3.6/6kV for suburban underground power distribution; 8.7/10kV for urban tunnels and bridge infrastructure; 18/30kV-26/35kV for mining, oil fields, and heavy-load intercity power transmission.
- Strong Direct Burial Capability: Integrated steel tape armor eliminates the need for protective conduits, saving over 40% in installation costs, making it ideal for large-scale underground projects worldwide.
- All-Weather Corrosion Resistance: Operates in temperatures ranging from -40℃ to 90℃, resistant to salt spray (coastal areas), acid and alkali corrosion (industrial areas), and high humidity (tropical areas), suitable for Africa, Southeast Asia, Europe, and the Middle East.
- Energy Efficiency: Oxygen-free copper conductors reduce power loss by 30% compared to aluminum cables, thereby reducing long-term energy costs for industrial and infrastructure projects.
- Global Certifications and Market Access: Compliant with IEC 60502-1, CE (EN 50267), SASO (Saudi Arabia), KEBS (Kenya), and INMETRO (Brazil) standards, possessing complete certification documentation and ensuring smooth customs clearance worldwide.
- High Reliability in Critical Scenarios: Low failure rate in high-risk environments (such as mines and oil fields), easy to maintain, ensuring uninterrupted power supply for critical operations and minimizing downtime losses.
| Conductor Material | Core Wire * Cross-sectional Area (mm²) | Rated Voltage (kV) | Insulation Thickness (mm) | Sheath Thickness (mm) | Armor Thickness (mm) | Conductor Resistance (Ω/km, 20℃) | Outer Diameter (mm) | Maximum Current (A) 90℃) | Target Areas and Applications |
|---|---|---|---|---|---|---|---|---|---|
| Oxygen-Free Copper | 3*120 | 3.6/6 | 1.4 | 2.2 | 0.8 | 0.164 | 58.9 | 490 | Southeast Asia (Indonesia, SNI certified, suburban underground burial) |
| Oxygen-Free Copper | 3*240 | 8.7/10 | 2.0 | 2.6 | 0.8 | 0.081 | 77.5 | 760 | Europe (Germany, CE certified, urban tunnel infrastructure) |
| Oxygen-Free Copper | 3*400 | 8.7/10 | 2.2 | 2.9 | 0.8 | 0.049 | 94.3 | 1050 | Africa (South Africa, SABS certified, industrial area underground burial) |
| Oxygen-Free Copper | 3*500 | 18 /30 | 2.7 | 3.1 | 0.8 | 0.039 | 106.8 | 1200 | Global (Mining Industry, IEC Certified) |
| Oxygen-Free Copper Core | 3*630 | 18/30 | 2.9 | 3.3 | 0.8 | 0.031 | 119.5 | 1400 | Middle East (UAE, SASO Certified, Oil Fields) |
| Oxygen-Free Copper Core | 3*800 | 26/35 | 3.2 | 3.5 | 0.8 | 0.024 | 135.2 | 1650 | Europe (France, CE Certified, High-Speed Railway Power Supply) |
A1: Of course! YJV22 uses 22-gauge double steel tape armor, providing excellent impact resistance and effectively resisting the scraping and impact of rocks during installation in rocky areas of Africa. We also offer customized thickened armor (1.0mm) for areas with dense rock formations. This product has passed KEBS/SABS/SONCAP certification, fully complies with local African standards, and is the first choice for rural electrification and underground projects in industrial areas of Africa.
Answer 2: The main difference lies in flame retardancy. YJV22 is a standard armored cable and does not have flame retardant properties, suitable for environments where flame retardancy requirements are not high. ZR-YJV22 incorporates flame-retardant materials in its insulation and sheath, which can inhibit the spread of flames during combustion. For high fire risk areas (subways, high-rise buildings, chemical plants), ZR-YJV22 is recommended; YJV22 is more suitable for general outdoor underground installations and offers better cost performance.
A3: Yes! We have customized YJV22 cables for the tropical rainforest regions of Southeast Asia, using a moisture-proof XLPE insulation layer and a mildew-proof PE sheath, effectively preventing moisture penetration and mold growth on the sheath. It has excellent waterproof performance and can be safely used for direct burial in high-humidity soils. All products sold to Southeast Asia are SIRIM/SNI certified, comply with Malaysian and Indonesian standards, and are widely used in plantation and rural electrification projects in Southeast Asia.
A4: For bulk orders of YJV22, we offer a 15-year quality guarantee. We also provide pre-sales technical consultation (voltage level selection, laying scheme design) and after-sales on-site installation guidance. For global projects, we have local agents in Europe, Africa, and Southeast Asia who can provide timely maintenance services. In addition, we can customize certification documents according to project requirements to ensure successful project acceptance.
