| Brand Name: | JinHong |
| Model Number: | YJV22 |
| MOQ: | 100m |
| Price: | 8.99-25USD/m |
| Payment Terms: | T/T |
Medium voltage cables operate from 6kV to 35kV and are the backbone of power distribution systems, designed to ensure high reliability. They connect high-voltage transmission lines to end-user power supply systems, thus requiring robust construction, high-grade insulation, and protective layers to ensure safe and reliable operation even under harsh environments and continuous electrical, thermal, and physical stresses.

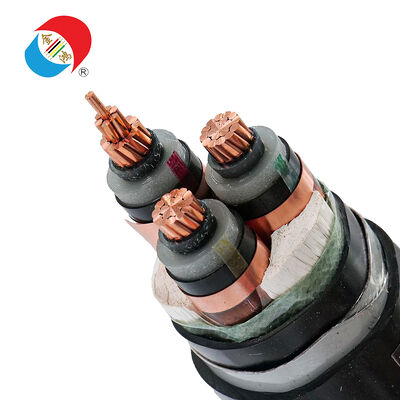

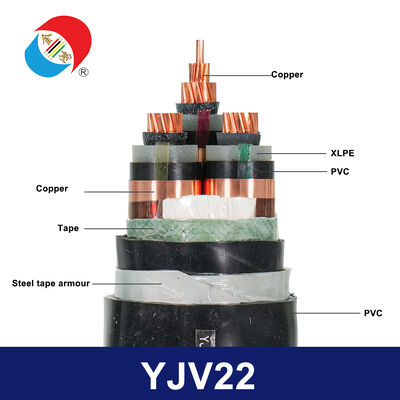

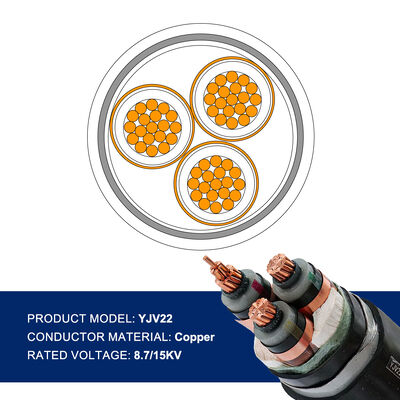

Strengthen your power infrastructure to meet the most demanding challenges. YJV22 armored medium voltage cables are designed for environments where ordinary cables cannot operate. Their pure copper core ensures maximum conductivity, protected by advanced XLPE insulation and robust double-layer steel tape armor. This design guarantees superior resistance to pressure, shock, and environmental hazards, making them ideal for industrial plants, mining operations, coastal facilities, and any application with extremely high reliability requirements.
| Voltage Rating | Up to 26/35 kV |
| Conductor Material | Electrolytic Copper |
| Insulation System | Cross-linked Polyethylene (XLPE) |
| Armor Specifications | Double-layer galvanized steel tape |
| Outer Sheath | Flame-retardant polyvinyl chloride (PVC) |
| Standards Compliance | IEC 60502, IEEE 404, SANS 1339 |
| Continuous Operating Temperature | 90°C |
| Typical Structure | Single-core, three-core, or three-and-a-half-core |
Q: In which specific situations is YJV22 required instead of standard YJV?
A: YJV22 is suitable for direct burial in rock and soil, areas with heavy vehicle traffic, industrial sites with mobile equipment, or locations with a high risk of rodent damage.
Q: How does the armor affect installation?
A: The steel tape provides excellent protection, but care must be taken with the bending radius during installation. It is designed for fixed, long-term installations, not for applications requiring frequent rewiring.
Q: Are there certifications for different regions?
A: Yes. We provide cables that meet IEC standards and are certified, and can also offer products with region-specific certifications for markets such as the Middle East (GCC), Africa (SABS), and Asia Pacific, ensuring smooth project approval.
Q: What are the best SEO keywords for this armored cable?
A: Target search terms include: "YJV22 35kV armored power cable", "Industrial heavy-duty medium-voltage cable", "Copper core steel tape armored cable", "Export IEC certified cable", and "Global supplier of mining power cables".
