VV Medium Voltage PVC Power Cable 6/6kV Reliable Fixed Electrical Distribution
Product Summary
Product Details
VV Power Cable 6/6kV
,Medium Voltage PVC Power Cable
,Fixed Electrical Distribution VV Cable
Product Description
Explore our high-performance medium-voltage VV cables, featuring double PVC insulation and sheathing for reliable power transmission. Compliant with IEC, CE, and ISO standards, these cost-effective cables are ideal for indoor, tunnel, and conduit installations, making them perfect for industrial, commercial, and urban power distribution projects worldwide. Easy to install, chemically resistant, and with stable conductivity, they offer a reliable 3.6/6kV to 12/20kV power solution. We provide worldwide shipping, and flexible minimum order quantities can meet your project needs.
| Core Wire * Cross-sectional Area (mm²) | Rated Voltage (kV) | Insulation Thickness (mm) | Sheath Thickness (mm) | Approximate Outer Diameter (mm) | Conductor Material |
|---|---|---|---|---|---|
| 3*50 | 3.6/6 | 1.4 | 2.0 | 28.6 | Oxygen-Free Copper |
| 3*70 | 3.6/6 | 1.6 | 2.2 | 32.1 | Oxygen-Free Copper |
| 3*95 | 8.7/10 | 1.8 | 2.4 | 36.8 | Oxygen-Free Copper |
| 3*120 | 8.7/10 | 2.0 | 2.6 | 40.5 | Oxygen-Free Copper |
| 3*185 | 12/20 | 2.4 | 2.8 | 48.2 | Oxygen-Free Copper |
| 3*240 | 12/20 | 2.6 | 3.0 | 53.7 | Oxygen-Free Copper |

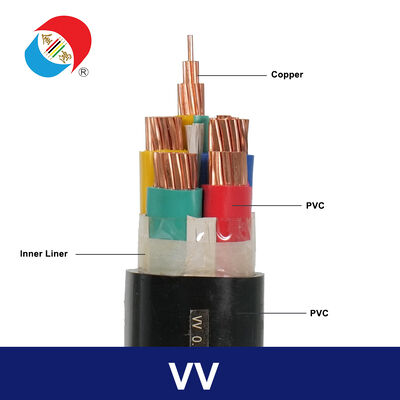

- Double-layer PVC structure: Both the insulation layer and sheath are made of high-quality PVC material, ensuring excellent electrical insulation and mechanical protection performance.
- Stable conductivity: Uses 99.996% oxygen-free copper conductor, with low resistance and strong oxidation resistance.
- Global certification: Certified by IEC, CE, and ISO 9001, meeting standards in Europe, Africa, Southeast Asia, and other regions.
- Cost-effective solution: Mature production processes ensure reliable performance while reducing costs, suitable for large-scale projects.
- Flexible installation: Suitable for indoor, tunnel, cable trench, and conduit laying, easy to install and maintain.
Question 1: What is the operating temperature range of this VV cable?
Answer 1: The maximum long-term permissible operating temperature of the conductor is 70℃, the laying temperature should not be lower than 0℃, and the maximum conductor temperature during a short circuit (duration not exceeding 5 seconds) should not exceed 160℃.
Question 2: In which countries or regions is this cable suitable?
A2: Our medium-voltage VV cables conform to international standards and are widely exported to Africa, the Middle East, Southeast Asia, South America, Europe, and other regions. We can also customize according to the local standards of specific countries.
Q3: What is the minimum order quantity (MOQ)?
A3: The MOQ for standard specifications is 100 meters. For special specifications or small batch orders, please contact us, and we will do our best to meet your needs.
Q4: Can I request a sample to test the quality?
A4: Yes, we provide free samples (shipping costs are your responsibility). After confirming the price and specifications, we can arrange sample shipment within 3-7 working days.
Q5: What is the delivery time?
A5: In-stock products can be shipped within 3-5 working days; customized products have a delivery time of 15-25 working days, depending on the order quantity and specifications.
Q6: Does the cable have flame-retardant properties?
A6: Standard VV cables have basic flame-retardant properties. If you have higher flame retardant requirements, we can provide ZR-VV flame retardant cables that meet the IEC 332-3 standard.
