WDZ-YJY23 Flame Retardant LSZH Fire-Resistant Cable Global Projects
Product Specification
Place of Origin:
Anhui China
Brand Name:
JinHong
Model Number:
WDZ-YJY23
Minimum Order Quantity:
100m
Price:
6.99-35 USD/m
Delivery Time:
15-20days
Payment Terms:
T/T
Product Summary
WDZ-YJY23 Advanced Flame Retardant Low Smoke Halogen-Free (LSZH) Power Cable, certified for safety and durability. Ideal for tunnels, metro, and high-load applications worldwide. View specifications and get a quote. WDZ-YJY23 Flame Retardant Low Smoke Halogen-Free Power Cable – IEC, CE, and RoHS ...
Product Details
Highlight:
WDZ-YJY23 LSZH Fire-Resistant Cable
,Flame Retardant LSZH Fire-Resistant Cable
,WDZ-YJY23 Flame Retardant Cable
Lengthperroll:
100 Meters
Screen:
Al-Foil
Conductor:
Tinned Copper Wire
Elongation:
≥100%
Braid Screen:
Tinned Copper Wire
Tensile Braid:
Kevlar Tensile Braid.
Waterproof:
Yes
Density:
75%
Test Voltage:
2 KV
Voltage:
0.6/1KV, 1.8/3KV
Application:
Industrial Automation
Uv Resistant:
Yes
Sheath:
Rubber
Cable Length:
1M,0.5m,2M,1.2m,3M
Length:
100 Meters
Product Description

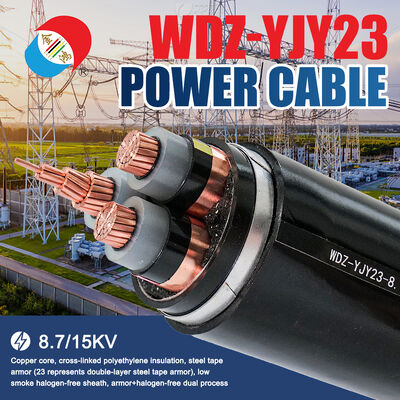

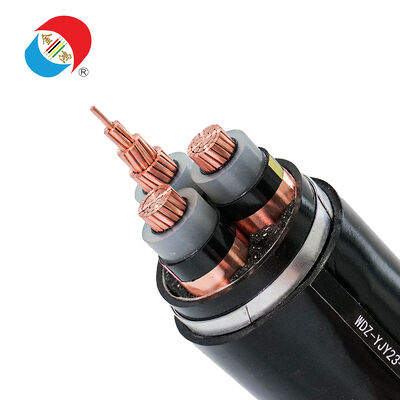

WDZ-YJY23 Advanced Flame Retardant Low Smoke Halogen-Free (LSZH) Power Cable, certified for safety and durability. Ideal for tunnels, metro, and high-load applications worldwide. View specifications and get a quote.
WDZ-YJY23 Flame Retardant Low Smoke Halogen-Free Power Cable – IEC, CE, and RoHS Certified
Market Optimization Introduction
WDZ-YJY23 is a top-of-the-line flame-retardant power cable designed for safety and performance, enhancing your infrastructure. This low smoke halogen-free (LSZH) cable is designed for tunnels, metro, industrial plants, and densely populated areas, reducing toxic emissions and fire hazards. With superior insulation, corrosion resistance, and long-lasting durability, it meets international standards for high-load applications. Our cables are trusted by engineers worldwide, ensuring reliable power delivery even under extreme conditions. Safer and smarter.
Key Features
- Flame retardant, low smoke, halogen-free (LSZH)
- Excellent fire resistance and self-extinguishing properties
- Reduces toxic fume emissions, ensuring safe evacuation
- Waterproof, moisture-proof, and corrosion-resistant
- High mechanical strength and long service life
- Complies with IEC, CE, RoHS and global certification standards
- Suitable for tunnels, subways, buildings, and power networks

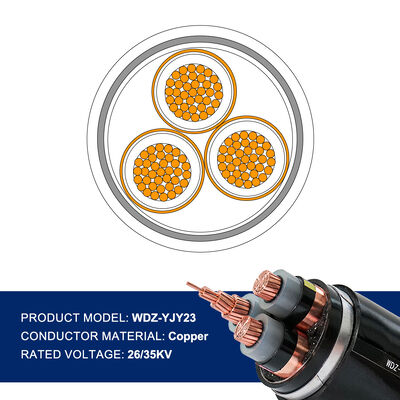

Common Specifications
| Specifications | Details |
|---|---|
| Conductor Material | Copper |
| Insulation Material | Cross-linked Polyethylene (XLPE) |
| Sheath Material | LSZH compound |
| Rated Voltage | 0.6/1 kV |
| Operating Temperature | -20°C to +90°C |
| Fire Resistance Rating | IEC 60332-1, IEC 61034, IEC 60754 |
| Certification Standards | GB, IEC, BS, DIN, CE |
| Optional Sizes | 1.5 mm² to 300 mm² |
| Packaging | Wooden reels or custom packaging |
Frequently Asked Questions

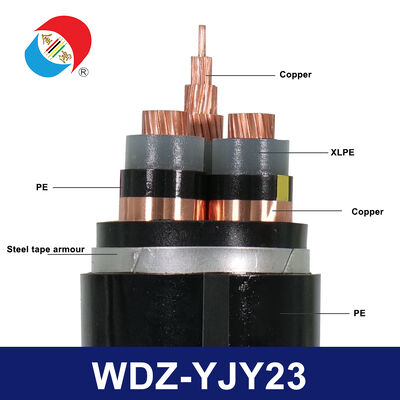

- Q1: What does WDZ-YJY23 represent? A: W: Flame retardant; D: Low smoke; Z: Halogen-free; YJ: Cross-linked polyethylene (XLPE) insulation; Y: Polyethylene sheath; 23: Steel tape armor.
- Q2: In which locations is WDZ-YJY23 typically used? A: Suitable for tunnels, subways, power plants, high-rise buildings, and other locations with high fire safety requirements.
- Q3: Is this cable suitable for outdoor use? A: Yes, it is waterproof, UV resistant, durable, and suitable for both indoor and outdoor installation.
- Q4: What certifications does it have? A: Compliant with IEC, CE, RoHS, and multiple international safety and performance standards.
- Q5: Can I customize the length or label? A: Yes, we offer customized packaging, labeling, and lengths to meet your project needs.
