LSHZ Flame Retardant Class A Certified Power Cable Suitable Smart Building Industrial

Toxic fumes from burning cables and failure to meet environmental testing standards are major pain points for builders and facilities managers worldwide. WDZA-YJY Halogen-Free Low-Smoke Class A Flame Retardant Cable completely solves these problems. It utilizes an advanced halogen-free, low-smoke polyolefin sheath and XLPE insulation layer, releasing no toxic or harmful gases during combustion and producing extremely low smoke concentrations, facilitating visibility for evacuation personnel. As a top-grade Class A flame-retardant cable, it instantly prevents the spread of flames. Its all-weather design adapts to various environments, from -35°C (Northern Europe) to 58°C (Middle East) and humid monsoons (Southeast Asia). This cable has obtained EU (CE/RoHS 3.0), North American (UL/cUL), Australian (SAA), and Middle East & North Africa (SASO) certifications, making it an ideal environmentally friendly and safe power solution for high-end intelligent buildings, data centers, and industrial facilities worldwide.

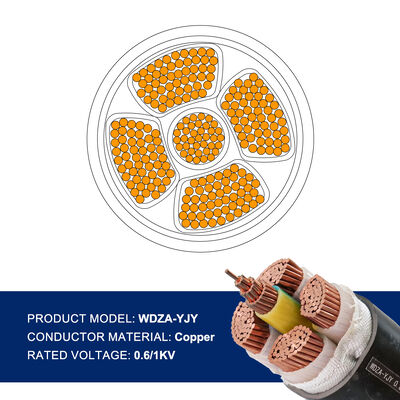

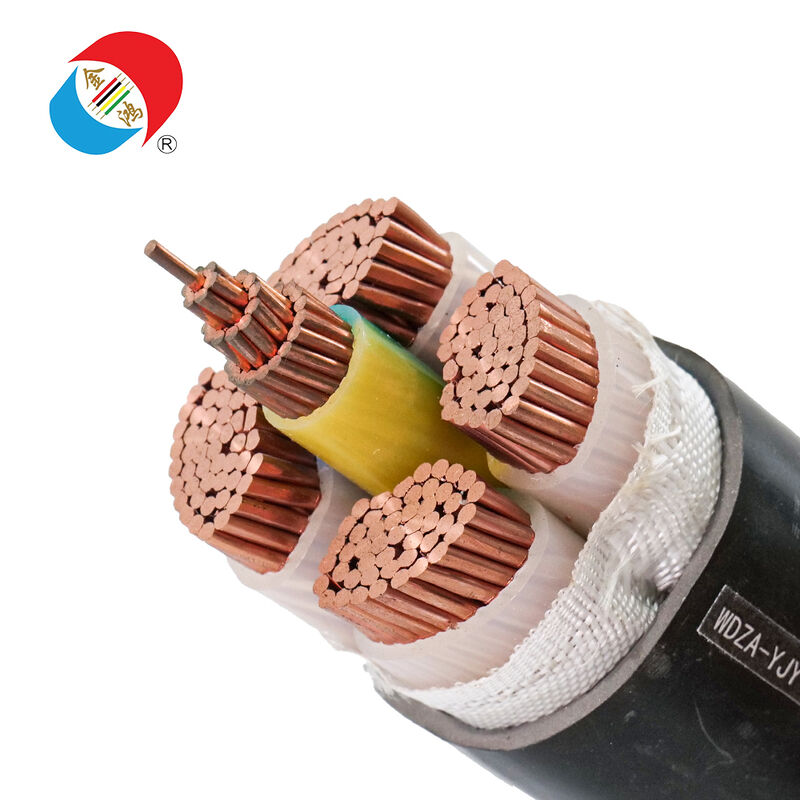

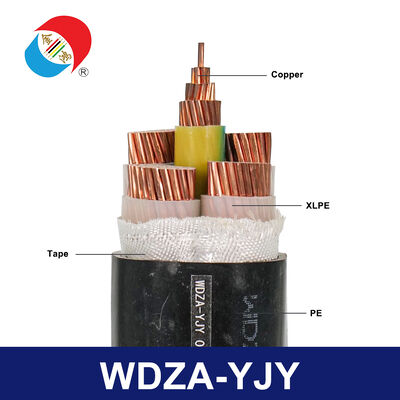

WDZA-YJY is a high-quality low-voltage (0.6/1kV) halogen-free, low-smoke Class A flame-retardant power cable, designed specifically for high-quality projects with extremely high environmental and fire protection requirements. Its advanced multi-layer structure ensures triple reliability: Class 2 high-purity stranded copper conductors (low resistance, stable power supply), XLPE insulation layer (anti-aging, high-temperature resistant, low power loss), halogen-free low-smoke filler layer (moisture-proof, environmentally friendly), and halogen-free low-smoke polyolefin outer sheath (Class A flame retardant, corrosion-resistant, UV resistant). "WDZA" represents halogen-free (W), low-smoke (DZ), and Class A flame retardant (A)—the highest standards of environmental protection, fire safety; "YJY" represents XLPE insulation and halogen-free polyolefin sheath. Its uniqueness lies in its combination of the highest flame retardancy and 100% environmentally friendly materials, eliminating fire and environmental risks, and compatibility with modern intelligent power monitoring systems.

• Halogen-free, low-smoke, environmentally friendly and safe: It does not release halogenated toxic gases or corrosive fumes during combustion; smoke density (SDR) ≤ 10. Compliant with global environmental standards (RoHS 3.0, REACH), easily passing EU/North American/Australian environmental tests—crucial for enclosed spaces such as data centers and hospitals.
• Top-tier Class A flame retardancy: Exceeding GB/T 18380.3 and IEC 60332-3-24 Class A standards, exhibiting no flame spread or dripping after 40 minutes of vertical burning. Preventing fire spread along cables and protecting property and lives—essential for high-end commercial and industrial projects worldwide.
• All-climate adaptability (-35℃ to 95℃): Featuring a halogen-free polyolefin sheath with added UV resistance, antifreeze, and salt spray resistance additives. Reliable in harsh environments globally, from -35℃ in Northern Europe to 58℃ in the Middle East desert, from Southeast Asian monsoon climates to the salt spray of the Australian coast—reliable operation in a wide range of extreme conditions worldwide.
• Smart project and low-loss compatibility: Low capacitance and low impedance make it fully compatible with building management systems (BMS) and intelligent power monitoring platforms. XLPE insulation minimizes power loss (≤3% transmission loss), making it suitable for long-distance, high-quality power lines (up to 650 meters with a 16mm² cross-section)—ideal for smart cities and data centers.
• Multiple global certifications save costs: CE/RoHS 3.0 (EU), UL/cUL (North America 600V), SAA (Australia/New Zealand), SASO (Middle East and North Africa), and IEC 60502 (global). A single cable meets the needs of multiple high-end markets, avoiding the costs of duplicate certifications. The flexible structure saves 30% on installation labor compared to rigid cables; no additional fireproof/environmentally friendly outer casing is required, reducing total project costs by 20%.

Note: All specifications are in stock (fast shipping within 3 days). Bulk orders can be customized in terms of core count (up to 5+1 cores) and cross-sectional dimensions (1.5~240mm²), and complete environmental and fire protection certifications are guaranteed.

WDZA-YJY cables are specifically tailored to meet the environmental protection, fire safety, and environmental requirements of high-end projects worldwide, covering the following application scenarios with high compliance requirements:

• EU Market: Smart commercial skyscrapers, data centers, hospitals, airport terminals, high-speed rail stations (compliant with CE/RoHS 3.0 standards, meeting EN 50200 environmental and fire safety regulations)
• North American Market: Medical institutions (ICU/operating rooms), technology park data centers, luxury residential buildings, industrial cleanrooms (UL/cUL certified, compliant with NFPA 70/110 standards)
• Australia and New Zealand: Coastal high-end hotels, auxiliary power supplies for mining areas, commercial complexes, educational institutions (SAA certified, resistant to inland high temperatures and coastal salt spray)
• Middle East and North Africa Market: Luxury shopping malls, oil and gas field environmental infrastructure, desert smart cities, high-end resorts (SASO certified, heat-resistant and dust storm-resistant)
• Global high-end industries: semiconductor factories, pharmaceutical factories, food processing cleanrooms, smart city infrastructure (environmentally friendly, low-smoke, suitable for clean environments)
