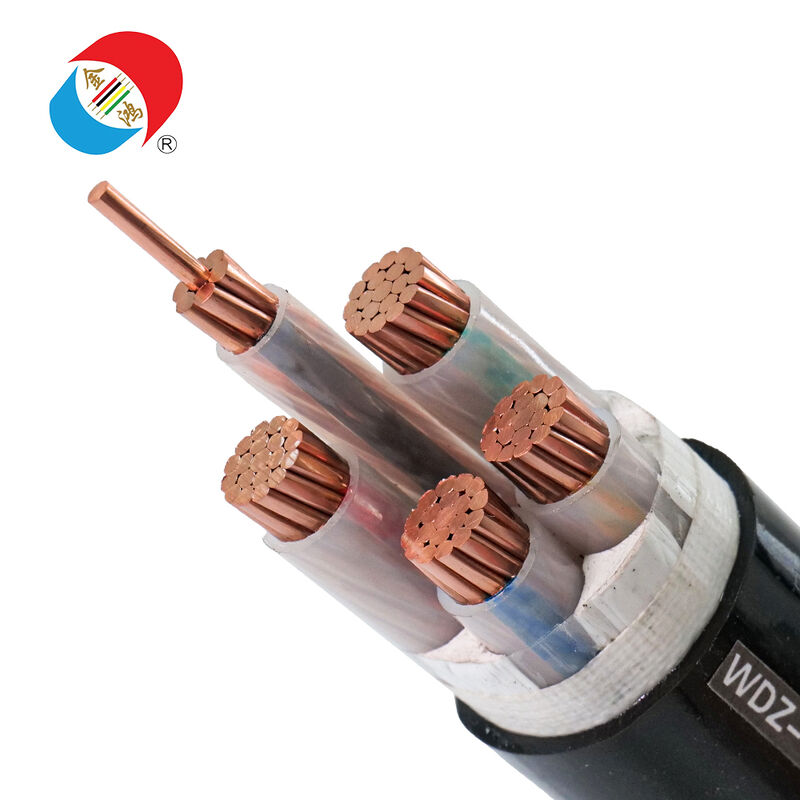

LSZH Power Cable Designed to Meet Global Safety Standards Commercial Industrial

The toxic fumes and uncontrolled flame spread generated by traditional cables pose a serious threat to commercial and industrial projects worldwide. WDZ-YJY halogen-free, low-smoke, flame-retardant cables provide a universal safety solution for builders, facility managers, and engineers globally. Featuring a premium cross-linked polyethylene (XLPE) insulation layer and a halogen-free polyolefin sheath, this cable releases no toxic halogenated gases when burning and produces extremely low smoke density (SDR ≤18), ensuring clear visibility for evacuees. Its flame-retardant design effectively inhibits flame spread, while its robust construction withstands extreme temperatures of -35°C (Northern Europe), scorching heat of 58°C (Middle East), and humid monsoon climates (Southeast Asia). This product has obtained certifications from the EU (CE/RoHS 3.0), North America (UL/cUL), Australia (SAA), and the Middle East and North Africa (SASO), making it the preferred power solution for cost-effective, environmentally friendly, and safe applications in globally critical power distribution scenarios.

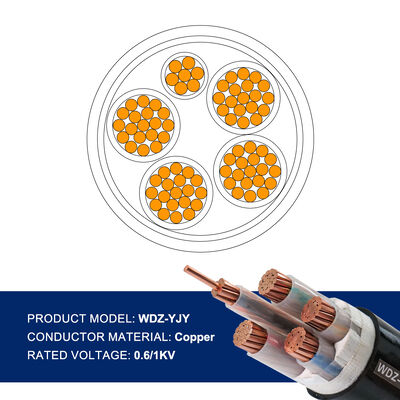

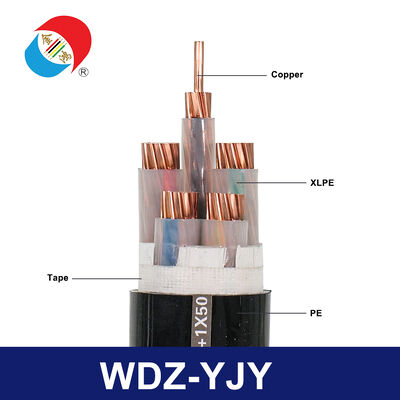

WDZ-YJY is a versatile low-voltage (0.6/1kV) halogen-free, low-smoke, flame-retardant power cable designed for critical power distribution applications in commercial and industrial settings with extremely high requirements for environmental safety and basic flame retardant performance. Its optimized layered structure ensures stability and practicality: it uses Class 2 high-purity stranded copper conductors (low resistance, high-efficiency power supply), cross-linked polyethylene (XLPE) insulation (anti-aging, high-temperature resistant, low transmission loss), halogen-free low-smoke filler (moisture-proof, environmentally friendly), and a halogen-free polyolefin outer sheath (flame retardant, corrosion-resistant, UV-resistant, scratch-resistant). "WDZ" stands for Halogen-Free (W), Low Smoke (DZ), and Flame Retardant—balancing environmental friendliness with basic fire safety; "YJY" indicates the use of cross-linked polyethylene (XLPE) insulation and a halogen-free polyolefin sheath. Its uniqueness lies in its balance of environmental safety, flame retardancy, and cost-effectiveness, without the need for excessive pursuit of A/B grade flame retardancy or fire resistance, making it a universal choice for most non-emergency critical power distribution needs worldwide.

• Universal Flame Retardant and Environmentally Friendly: Uses halogen-free, low-smoke materials, compliant with RoHS 3.0 and REACH standards (free of 10 hazardous substances); flame retardant performance meets IEC 60332-1-2 and UL 1685 standards, effectively inhibiting flame spread and preventing dripping. Eliminates the risk of secondary poisoning from toxic fumes, easily passing global environmental and basic fire safety inspections.
• High-efficiency, low-loss transmission: Utilizing high-dielectric-strength XLPE insulation, it can withstand operating temperatures up to 90°C for extended periods, minimizing power loss (≤2.8% for 16mm² cross-section). Suitable for long-distance power distribution in commercial complexes and industrial parks, reducing energy waste and operating costs for global customers.
• All-climate adaptability (-35°C to 95°C): Featuring a halogen-free polyolefin sheath with added antifreeze, UV protection, salt spray resistance, and oil repellency additives. Reliable in harsh indoor/outdoor environments, it withstands blizzards in Northern Europe, desert heat in the Middle East, monsoons in Southeast Asia, and salt spray along the Australian coast, requiring no additional protection.
• Broad compatibility with universal projects: Compliant with global commercial and industrial power distribution standards, compatible with traditional electrical equipment and building wiring systems. Requires no specialized installation tools or techniques, making it ideal for retrofit and new construction projects.
• Global multi-certification and cost savings: CE/RoHS 3.0 (EU), UL/cUL (North America 600V), SAA (Australia/New Zealand), SASO (Middle East and North Africa), and IEC 60502 (global). A single cable can meet the needs of multiple common project markets, avoiding the costs of duplicate certifications. The flexible structure saves 28% on installation labor costs compared to rigid cables; no additional fireproof/environmentally friendly casing is required, reducing total project costs by 19%.

WDZ-YJYR (Flexible) 2, 3, 4, 5, 3+1 cores; 1.5, 2.5, 4, 6, 10, 16mm²; 0.6/1kV; 90℃; IEC 60332-1-2; CE, UL, RoHS 3.0; Suitable for confined space installation (global).

Note: All specifications are in stock (fast shipping within 3 days). Bulk orders can be customized in terms of core count (up to 5+1 cores) and cross-sectional dimensions (1.5~240mm²), and complete environmental and flame-retardant certifications are guaranteed.

• EU Market: General power supply for green commercial buildings, auxiliary power lines for industrial parks, public area lighting in shopping malls, power distribution in school campuses (compliant with CE/RoHS 3.0 standards, meets EN 50200 green building standards)
• North American Market: Auxiliary equipment power supply for industrial plants, general wiring for retail stores, public area power supply for residential communities, lighting for warehouse and logistics centers (UL/cUL certified, compliant with NFPA 70 NEC standards)
• Australia and New Zealand: General power supply for coastal commercial complexes, rural infrastructure wiring, auxiliary power supply for educational institutions, power distribution in suburban shopping malls (SAA certified, withstands inland high temperatures and coastal salt spray)
• Middle East and North Africa Market: General power supply for desert commercial facilities, main wiring for residential communities, auxiliary power supply for small industrial parks, public area power supply for tourist resorts (SASO certified) Certified, heat-resistant and dust storm-resistant)
• Globally applicable scenarios: Auxiliary power supply for textile factory production lines, general power distribution in food processing plants, non-critical power supply for water treatment plants, urban street lighting power supply (environmentally friendly, safe, flame-retardant, suitable for various industrial/commercial environments)

• What is the difference between WDZ-YJY and WDZB-YJY?
  WDZ-YJY is a general-purpose flame retardant (no specific rating), suitable for basic fire protection scenarios; WDZB-YJY is a Class B flame retardant (higher rating, stricter flame spread control). WDZ-YJY is suitable for general projects and offers high cost-effectiveness; WDZB-YJY is suitable for scenarios with higher flame retardant requirements—please choose according to the fire protection rating of the project.
• Can WDZ-YJY be used for indoor residential wiring?
  Yes. Its halogen-free and low-smoke characteristics ensure indoor air safety, making it suitable for general sockets and lighting wiring in residential buildings. For high-density residential projects, we recommend using our dedicated residential wiring accessories to improve installation efficiency.
• Does it comply with the latest EU REACH regulations?
  Fully compliant. All WDZ-YJY cables are fully compliant with REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) regulations, and the content of all Substances of Very High Concern (SVHCs) does not exceed the limits. We provide official REACH compliance reports for all bulk orders.
• What is the difference between WDZ-YJY and YJV cables?
  WDZ-YJY is a halogen-free, low-smoke, flame-retardant cable (environmentally friendly and safe, producing no toxic fumes when burning); YJV is a PVC insulated/sheathed cable (releasing toxic halogenated gases when burning and lacking low-smoke characteristics). WDZ-YJY is suitable for projects with high environmental requirements and lower fire resistance requirements, while YJV is suitable for general low-demand scenarios.
• Is WDZ-YJY suitable for temporary construction site power supply?
  Yes. Its flexible structure and all-weather adaptability make it ideal for temporary construction site power distribution. We recommend the WDZ-YJYR flexible version to meet the needs of frequent bending and movement on construction sites.
• How to determine the right specifications for my project?
  Our professional team will help you determine this based on three key factors: project type (commercial/industrial/residential), rated voltage, and installation environment (indoor/outdoor/confined space). Simply provide your project details, and we will provide you with customized specification advice free of charge.
