YJLHV22 cinta de acero de aleación de aluminio blindado PVC envuelto cable de alimentación STA Cable de distribución blindado subterráneo
Product Overview YJLHV22 is a medium-to-low voltage armored power cable designed for demanding underground and outdoor applications, serving as an upgraded successor to the YJLV22 aluminum-conductor cable. It features AA8030 rare-earth creep-resistant aluminum alloy conductors, extruded cross-linked polyethylene (XLPE) insulation, an inner bedding layer, double-layer overlapping galvanized steel tape armor, and a weather-resistant PVC outer sheath. This design effectively
Cable de alimentación aislado de aleación de aluminio XLPE antiarrastre para tronco aéreo, renovación de redes residenciales y cableado de distribución comercial grande
YJHLV Power Transmission Cable: Advanced Aluminum Alloy Conductor Solution A clear breakdown of the model designation helps electrical designers, cost estimators, grid procurement specialists, and construction project managers quickly identify the structural definition and core specifications: Model Designation Breakdown YJ: Cross-linked polyethylene (XLPE) insulation, offering excellent heat resistance and insulation stability, suitable for long-term power transmission. HL:
YH Cable flexible de caucho de silicona resistente a altas temperaturas para equipos de calefacción, cableado de hornos y conexión interna industrial de alta temperatura
For electrical design engineers, equipment R&D personnel, procurement managers, and plant project managers, we provide a detailed breakdown of model designations to help quickly clarify product positioning and structural characteristics: Y: Designation for rubber insulation within wire and cable naming standards. H: High-temperature resistance rating—utilizing a custom silicone rubber formulation, it is capable of withstanding long-term, continuous high-temperature operating

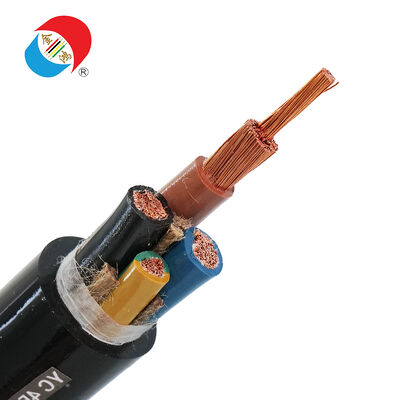

YC Cable flexible de caucho de carga pesada para remolques de construcción, maquinaria móvil y sitios difíciles Conexiones temporales de energía
YC Heavy-Duty Flexible Trailing Rubber Cables A clear breakdown of model specifications helps electrical designers, cost estimators, procurement managers, and equipment OEM engineering teams quickly identify product positioning and structural grade differences: Y: Ethylene-propylene rubber (EPR) primary insulation material. C: Heavy-duty reinforced grade—offering significantly superior tensile strength, tear resistance, and abrasion resistance compared to light-duty YZ-grade
Cable de alimentación portátil flexible de cubierta de goma YC para equipos de construcción, instalación de energía temporal y conexión eléctrica móvil al aire libre
YC Heavy-Duty Flexible Rubber Cables: Product Overview A comprehensive model breakdown for electrical designers, cost engineers, procurement managers, and equipment manufacturers, aimed at clarifying product positioning and structural characteristics: Y: General-purpose rubber insulation material. C: Heavy-duty grade—Compared to the light-duty YZ-type rubber cable, this model offers superior mechanical strength, as well as enhanced tensile, tear, and abrasion resistance. YC
26/35kV WDZ-YJY23 Doble cinta de acero blindada LSZH Cable de energía de media y alta tensión para red urbana, entierro directo en el túnel y transmisión de subestaciones de nueva energía
Detailed model specifications designed for medium-to-high voltage design engineers, cost estimators, grid procurement specialists, and EPC project managers, enabling quick identification of structural classifications and electrical applications: WDZ: Low-smoke, zero-halogen (LSZH), flame-retardant type; supports customization of flame-retardant grades (WDZA/WDZB/WDZC) to meet specific fire safety design requirements. YJ: Thickened XLPE (cross-linked polyethylene) main
8.7/15kV WDZ-YJY23 Doble cinta de acero blindado LSZH cable de energía de voltaje medio para subestación, túnel y transmisión de energía de enterramiento directo
A detailed model breakdown for medium-voltage design engineers, tender estimators, and procurement specialists to facilitate the quick identification of structural and electrical characteristics: Model Breakdown WDZ: Low-smoke, zero-halogen (LSZH), flame-retardant type; flame-retardant grades (WDZA, WDZB, or WDZC) can be customized based on fire safety design requirements. YJ: Cross-linked polyethylene (XLPE) primary insulation, offering excellent resistance to medium-voltage
0.6/1kV WDZ-YJY23 Cable de alimentación retardante de llama LSZH blindado con cinta de acero para enterramiento directo, cableado de túneles e infraestructuras subterráneas
Detailed specifications for this model, enabling electrical designers, cost engineers, and procurement teams to quickly identify its structural characteristics: Product Overview: WDZ-YJY23 0.6/1kV Cable Key Features WDZ: Features low-smoke, zero-halogen, and flame-retardant properties; flame-retardant grades (WDZA/WDZB/WDZC) can be customized as required. YJ: Utilizes cross-linked polyethylene (XLPE) as the primary insulation layer. Y: Employs low-smoke, zero-halogen
WDZ-YJY Cables de alimentación aislados con ignición de halógenos y ignición de baja humedad y cero halógenos para cables interiores, edificios públicos e ingeniería de seguridad contra incendios
WDZ-YJY Cable Product Overview An Analysis of the WDZ-YJY Model Designation: WDZ: Low-smoke, halogen-free, and flame-retardant properties YJ: Cross-linked polyethylene (XLPE) insulation Y: Low-smoke, halogen-free polyolefin outer sheath WDZ-YJY is a widely used unarmored, flame-retardant power cable designed for fixed indoor power transmission and distribution lines. It features solid or stranded oxygen-free copper conductors, XLPE insulation, and a halogen-free, flame
WDZ-YJLHY23 LSZH cinta de acero de aleación de aluminio cable de alimentación blindado para entierro directo subterráneo e infraestructura pública
WDZ-YJLHY23 Model Code Breakdown WDZ: Low-smoke, zero-halogen, and flame-retardant properties YJ: Cross-linked polyethylene (XLPE) insulation LH: AA8030 series aluminum alloy conductor (creep-resistant alloy) Y: Low-smoke zero-halogen (LSZH) polyolefin bedding layer 23: Double steel tape armor + polyethylene outer sheath, providing mechanical protection for underground installation WDZ-YJLHY23 is a cost-optimized, heavy-duty power cable designed for fixed power transmission
WDZN-YJY Cable de energía resistente al fuego 0.6/1kV LSZH para infraestructura pesada e integridad de circuitos críticos
WDZN-YJY is a fire-resistant, low-smoke, zero-halogen (LSZH) power cable widely used in fixed installations for power transmission and distribution circuits. Featuring solid or tinned copper conductors, cross-linked polyethylene (XLPE) insulation, and an LSZH outer sheath, this cable meets the stringent fire safety requirements of densely populated public buildings and critical infrastructure. In the event of a fire, the WDZN-YJY cable emits minimal toxic halogen gases and
WDZ-KYJYRP Cable de control blindado individual torcido de par halógeno de cero humos con bajo humo para transmisión de señal diferencial de instrumento de precisión, DCS y alarma de incendio
Professional Model Designation Breakdown for Electrical and Instrumentation Engineers WDZ: Low-Smoke Zero-Halogen (LSZH) type; insulation, fillers, and outer sheath utilize halogen-free polyolefin composite materials, ensuring no toxic or corrosive halogen gases are released during open-flame combustion. K: Control cable; designed specifically for the transmission of low-voltage analog signals, digital differential signals, instrumentation signals, and fire alarm linkage

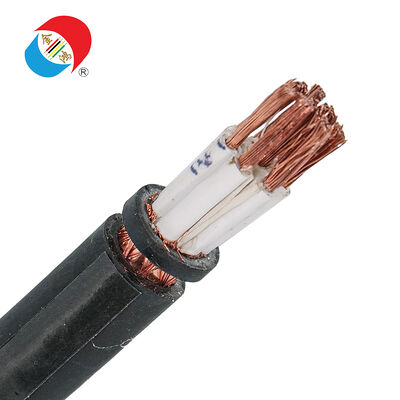

WDZ-KYJRP Cable de control blindado con halógenos cero y bajo humo para sistemas de transmisión de señales de automatización, instrumentos y conexión de fuego
Interpretation of Technical Specifications for Electrical and Automation Engineers WDZ: Low Smoke Zero Halogen (LSZH); features halogen-free insulation and sheathing; emits minimal, non-toxic smoke during combustion and produces no corrosive, halogen-containing gases. K: Control cable; specifically designed for low-current signal transmission, PLC control, instrumentation interlocking, and fire safety linkage circuits. YJ: XLPE (cross-linked polyethylene) core insulation;
WDZB-YJY Clase B Bajo humo Cero Halógeno Retardante de llama XLPE aislado LSZH Cable de alimentación con envoltura para zonas públicas comerciales generales, residenciales e instalaciones públicas estándar
Explanation of Engineering Terminology WDZ: Low Smoke Zero Halogen (LSZH). Both insulation and sheath materials utilize halogen-free polyolefin composites; they do not emit toxic or corrosive chlorine-containing gases when exposed to fire. B: Class B Flame Retardancy. A standard flame-retardancy rating for general civil buildings, meeting the requirements of the IEC 60332-3B vertical bunched cable combustion test. YJ: Cross-linked Polyethylene (XLPE) insulated core. Produced
WDZBN-YJY73 Clase B Tela de acero halógeno cero de bajo humo reforzada Cable de alimentación XLPE blindado para enterramiento directo, galería de tuberías y daños anti-mecánicos Ingeniería pública
1. Comprehensive Model Code Breakdown and Multi-layer Armored Cable Structure Analysis Professional code interpretation tailored for electrical engineering teams WDZ: Low Smoke Zero Halogen (LSZH); utilizes halogen-free insulation and sheath materials that do not emit toxic or corrosive gases when exposed to open flames. B: Class B flame-retardant rating; meets moderate fire safety standards for public and civil buildings. N: Enhanced bundled flame-retardant formulation;

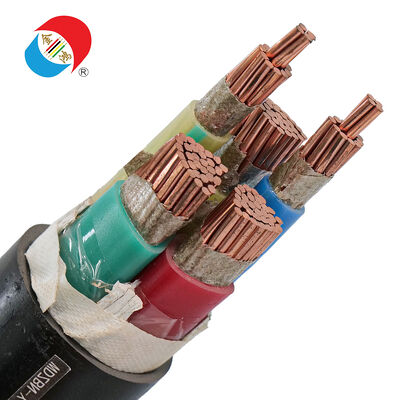

WDZBN-YJY Clase B Retenedor de fuego de halógenos cero y baja humedad XLPE aislado LSZH Cable de alimentación envuelto para construcción comercial, escolar y pública general de mediana altura
1. Comprehensive Analysis of Cable Model Nomenclature and Layered Internal Structure Technical model interpretation for engineering professionals: WDZ: Low-Smoke Zero-Halogen (LSZH); utilizes halogen-free insulation and sheathing materials that do not release toxic or corrosive halogen gases during combustion. B: Class B flame-retardant rating; suitable for most mid-to-high-rise public buildings with moderate fire safety design requirements. N: Enhanced flame-retardant type;
WDZA-YJY Clase A Cable de alimentación aislado XLPE con tapa LSZH con bajo humo cero halógeno para edificios de gran altura, metro y ingeniería pública de incendios críticos
1. Product Designation and Multi-layer Internal Structure Analysis Technical Code Definitions: WDZ: Low Smoke Zero Halogen (LSZH); utilizes halogen-free insulation and sheathing materials that produce minimal smoke and release no toxic halogen gases when exposed to fire. A: Class A smoke suppression rating; meets the highest standards for smoke density and toxicity indices as specified in fire safety codes for civil buildings. YJ: Cross-linked polyethylene (XLPE) insulated
Cable de distribución de baja tensión con envolvente de PVC aislado para cableado fijo en interiores y ingeniería civil general
1. Core Product Definition and Structural Comparison Matrix VV-type cables are low-voltage power cables featuring copper conductors, PVC insulation, and PVC sheathing. Designed specifically for fixed indoor power transmission, they are suitable for applications that do not require special fire resistance, high-temperature tolerance, or resistance to prolonged outdoor exposure. Their dual-layer PVC composite structure offers balanced basic insulation and physical protection,
Cable de alimentación de baja tensión con envoltura de PVC aislado para ingeniería de distribución fija general en interiores
1. Product Definition and Layered Internal Structure Analysis VV cable is defined as a low-voltage power cable featuring copper conductors, PVC insulation, and a PVC outer sheath; it is widely used in indoor fixed-installation power transmission and distribution systems where there are no stringent requirements for fire resistance or high-temperature tolerance. Utilizing a dual-layer PVC composite structure paired with high-conductivity copper cores, this cable is positioned

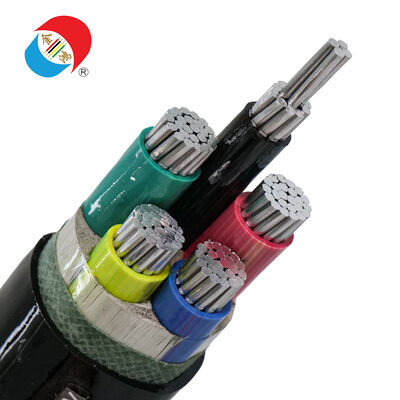

VLV núcleo de aluminio PVC aislado PVC revestido de baja tensión cable de alimentación para proyectos de distribución fija civil y municipal al aire libre
1. Product Overview and Structural Composition VLV cable is a low-voltage power cable featuring aluminum conductors, PVC insulation, and a PVC outer sheath; it is designed for fixed-installation power transmission and distribution systems that do not require special fire-resistance or emergency power supply capabilities. The structural layers, from inner to outer, are as follows: Compacted stranded aluminum conductor: Made from industrial-grade pure aluminum wire using a

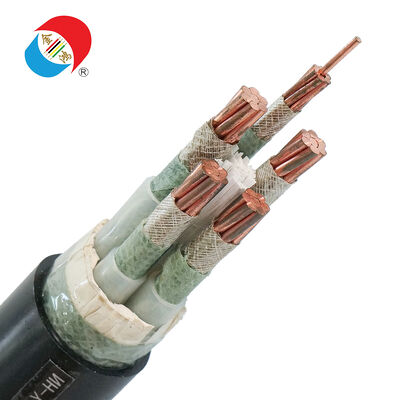

Cable de alimentación forrado de PVC con aislamiento de polietileno reticulado resistente al fuego NH-YJV para construcción e ingeniería municipal
1. Basic Product Definition and Core Technical Composition The NH-YJV cable is a Class A fire-resistant power cable featuring cross-linked polyethylene (XLPE) insulation and a polyvinyl chloride (PVC) sheath; it is designed for fixed-installation power transmission and distribution systems subject to mandatory fire-resistance requirements. Its comprehensive structure comprises a copper conductor core, an XLPE insulation layer, a fire-resistant barrier wrapping layer, filler
Cable de alimentación de cobre revestido de PVC con aislamiento de PVC resistente al fuego para línea de vida contra incendios, iluminación de emergencia y distribución de circuitos de seguridad críticos
1. Compliance with National Standards and a Complete Fire Resistance Certification System NH-VV series fire-resistant PVC insulated and PVC sheathed power cables strictly comply with the requirements of the national standard GB/T 5023-2023 "PVC Insulated Power Cables". The fire-resistant core material performance fully complies with GB/T 19665 "Test Standard for Fire-Resistant Cables" and meets the international standard IEC 60227 "Specification for PVC Low-Voltage Cable
Cable revestido de PVC blindado con cinta de acero de bajo voltaje para distribución de energía en la construcción industrial y civil
Product Core Definition and Production Standard Compliance The YJV22-0.6/1kV 3×95+1×50 XLPE insulated double-steel-tape armored copper cable is a fixed-lay low-voltage trunk cable specifically designed for global building, industrial, and municipal power distribution projects. All manufacturing processes strictly adhere to the domestic standard GB/T12706-2020 and the international standard IEC 60502, and it is suitable for 50Hz AC transmission systems. Its five-layer
Cable de alimentación de aluminio con aislamiento XLPE blindado con cinta de acero doble YJLV22 para actualización de redes rurales, patio portuario y cableado subterráneo para minería a cielo abierto Abastecimiento a granel
YJLV22 is an economical armored aluminum power cable designed according to GB/T12706 and the harmonized IEC 60502 international standards. It consists of high-purity aluminum stranded conductors, cross-linked polyethylene insulation, a PVC inner lining, overlapping double-layer steel tape armor, and a weather-resistant PVC outer sheath. Unlike copper-based YJV22 and AA8000 alloy YJLHV22 armored cables, YJLV22 uses conventional high-purity electrical aluminum, significantly
