Halogen Free PV1-F Photovoltaic DC Solar System Cable Weatherproof Design
Product Summary
Product Details
Halogen Free DC Solar System Cable
,Weatherproof DC Solar System Cable
Product Description
PV1-F is a DC cable solution designed for optimal photovoltaic (PV) power performance, helping you lead the future of renewable energy. This dedicated solar cable ensures minimal power loss and maximizes safety across the entire array. Featuring a halogen-free cross-linked structure, PV1-F can withstand harsh environments ranging from extreme heat to freezing, guaranteeing its durability and flame retardancy. Its superior flexibility allows for easy connection between PV panels and inverters, providing a reliable connection for energy output and system integrity, with a service life exceeding 25 years. Choose this cable to contribute to sustainable development.
- Premium DC cable optimized for solar panel interconnection
- Excellent resistance to UV, ozone, and weathering
- Using halogen-free flame-retardant materials for enhanced safety and environmental friendliness
- High temperature resistance up to +120°C, ideal for rooftop applications

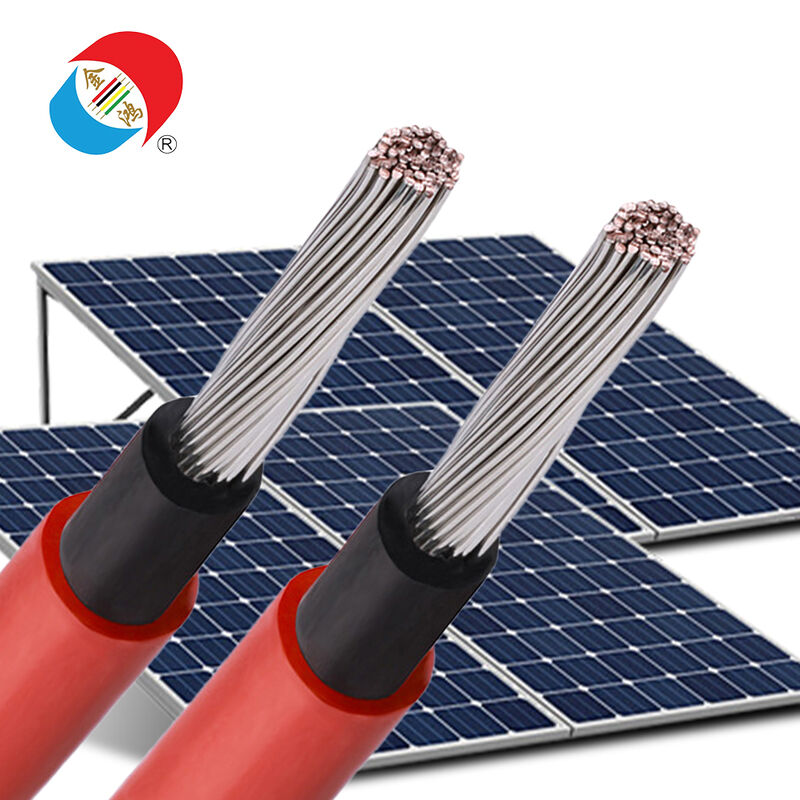

- Ultra-flexible fine-stranded tinned copper conductors for easy handling
- Complies with international standards including EN 50618 and UL 4703
- Offers standard solar identification colors for clear and safe wiring

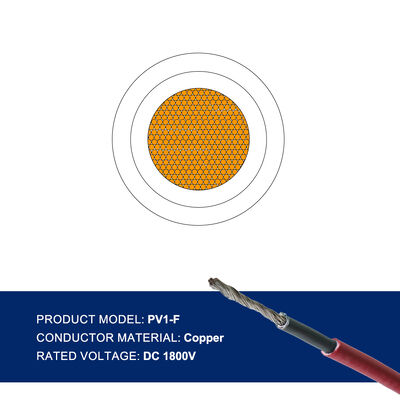

| Conductor: | Fine-stranded tinned copper |
|---|---|
| Insulation/Sheath Material: | Halogen-free cross-linked polyolefin |

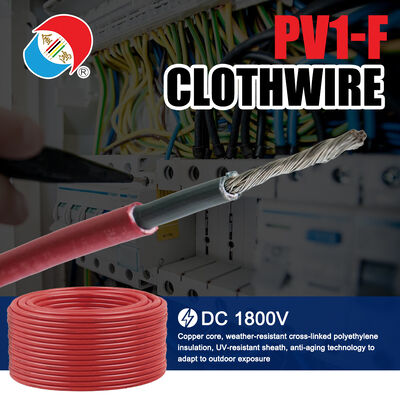

| Rated DC Voltage: | 1.8 kV (UL 4703) / 1.0 kV (EN 50618) |
| Continuous Operating Temperature: | -40°C to +120°C |
| Flame Rating: | IEC 60332-1-2 Flame Retardant |
| Main Certifications: | TUV (EN 50618), UL 4703, CE, RoHS |
| Standard Colors: | Red (Positive), Black (Negative) |
| Optional Cross-Sections: | 4 mm², 6 mm², 10 mm², 16 mm², 25 mm² |
A: Yes, its robust construction and certifications make it ideal for photovoltaic installations of all sizes, from residential rooftops to large-scale solar power plants.
A: Tin plating provides excellent corrosion resistance, which is crucial for long-term reliability in humid or coastal environments and ensures a stable, low-resistance connection.
A: No. PV1-F is designed for DC wiring inside photovoltaic systems. For connecting to the AC output of an inverter, a different AC cable must be used.
A: While both are used in the solar energy field, PV1-F typically refers to a new generation of products conforming to a specific EN 50618 standard, usually with a higher temperature rating and undergoing more stringent DC-specific testing.
A: Yes, we offer customization options, including meter markings, company logos, or unique identifiers to simplify project management and traceability.
