| Brand Name: | JinHong |
| Model Number: | VV |
| MOQ: | 100m |
| Price: | 6.15-15.55 USD/m |
| Payment Terms: | T/T |
Global Low-Voltage Distribution Standard Solution
Proven Power Cables in Millions of Installations Worldwide

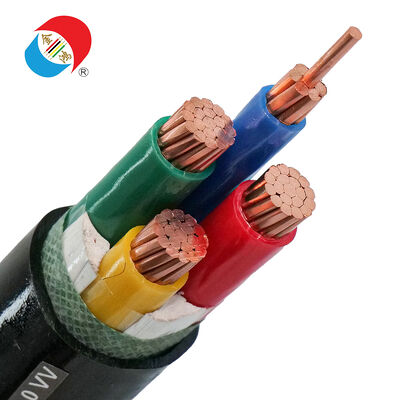

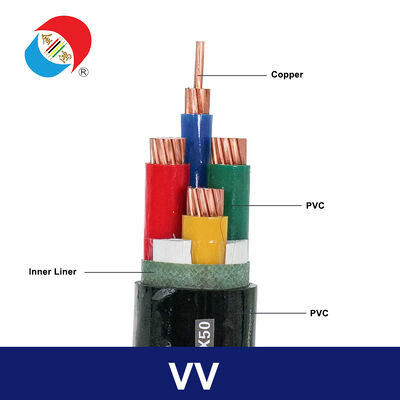

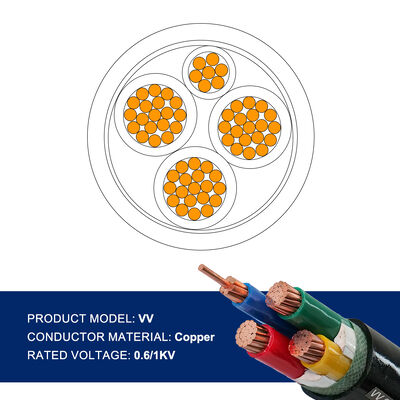

VV cables are copper core power cables with PVC insulation and a PVC sheath, designed for low-voltage power transmission in stationary electrical installations.
VV cables are renowned for their consistent electrical performance, ease of installation, and long service life, making them one of the most widely used copper core power cables in building and industrial projects worldwide.
If your project prioritizes reliability, compliance, and cost predictability, VV cables offer a proven solution.
High-purity copper conductors provide consistent current and low resistance, reducing energy loss.
The PVC insulation and outer sheath work together to effectively protect against mechanical stress, moisture, and aging.
Designed for continuous use in permanent indoor electrical installations.
Balanced flexibility makes it easy to wire in conduits, cable trays, and electrical rooms.
Widely used and recognized in Asia, the Middle East, Africa, Europe, and Latin America.
VV power cables are typically used in:
Recommended for indoor and protected environments.
| Specification | Details |
|---|---|
| Cable Type | VV Power Cable |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Sheath Material | PVC |
| Rated Voltage | 0.6 / 1 kV |
| Number of Cores Options | 1 / 2 / 3 / 4 / 5 cores |
| Conductor Size | 1.5 mm² – 300 mm² |
| Maximum Operating Temperature | 70°C |
| Installation Method | Indoor / Cable tray / Conduit |
| Reference Standard | IEC 60502 / GB |
| Standard Color | Black |
| Packaging | Reel / Wooden tray |
Copper conductors ensure predictable current carrying capacity under normal operating conditions.
The PVC sheath is abrasion-resistant, pressure-resistant, and can withstand installation damage.
A mature insulation system ensures long-term electrical stability.
The balance between performance and price makes VV cables ideal for bulk purchases.
| Comparison Items | VV Copper Cable | Aluminum Cable |
|---|---|---|
| Conductivity | High | Medium |
| Cable Size | Smaller | Larger |
| Voltage Stability | Excellent | Good |
| Installation | Easier | Requires Maintenance |
| Typical Projects | Building and Industrial | Cost-Controlled Projects |
VV cables are designed for low-voltage indoor power distribution and fixed electrical installations.
VV cables are suitable for indoor or protected environments. Outdoor use requires additional protection.
VV uses PVC insulation, while YJV uses XLPE insulation with higher temperature resistance.
Yes. We support customized conductor size, core count, sheath color, and packaging.
Yes. Factory test reports and third-party inspection documents can be provided upon request.
