| Brand Name: | JinHong |
| Model Number: | NH-YJV |
| MOQ: | 100m |
| Price: | 5.69-15.88 USD/m |
| Payment Terms: | T/T |
XLPE insulation supports a continuous conductor temperature up to 90°C, helping reduce insulation softening and performance drift during long-term heavy loading. This makes it a strong choice for vertical risers, main feeders, and equipment rooms where cable temperature is the hidden limiter.
Designed to meet GB/T 19666-2019 Class N requirements, NH-YJV can maintain power continuity for ≥ 90 minutes under fire test conditions. This keeps critical circuits running for systems such as: fire pumps, smoke extraction, emergency lighting, and evacuation guidance.
Stranded high-conductivity copper + low dielectric loss XLPE helps reduce unnecessary transmission loss—supporting more efficient distribution over long runs and improving overall electrical performance in large facilities.
The cable structure is suitable for common routing approaches (tray, conduit, trench, direct burial where applicable by design variant). The PVC outer layer provides everyday mechanical protection for typical building and plant environments.
| Item | Specification |
|---|---|

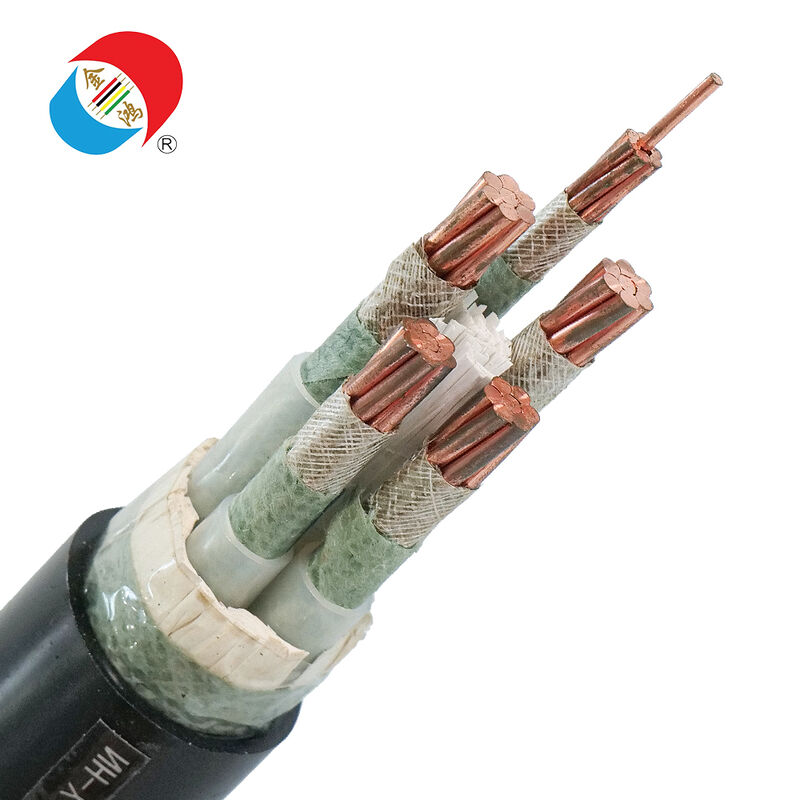

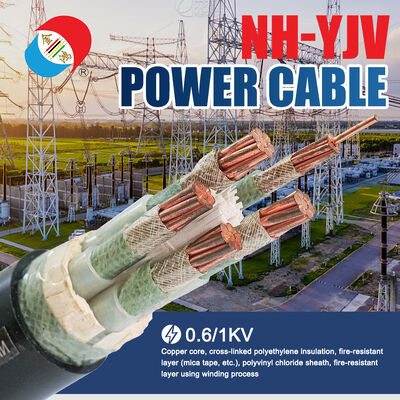

| Product Type | NH-YJV Fire-Resistant XLPE Insulated, PVC Sheathed Power Cable |
| Rated Voltage | 0.6/1 kV (AC) |
| Conductor | High-quality stranded copper (GB/T 3956-2008, Class 2) |
| Insulation | XLPE (continuous conductor temp ≤90°C) |
| Short-Circuit Temperature | ≤250°C (max 5 s) |
| Fire Resistance Grade | GB/T 19666-2019 Class N; fire endurance ≥90 minutes |
| Sheath | PVC (flame-retardant; abrasion; acid/alkali resistant) |

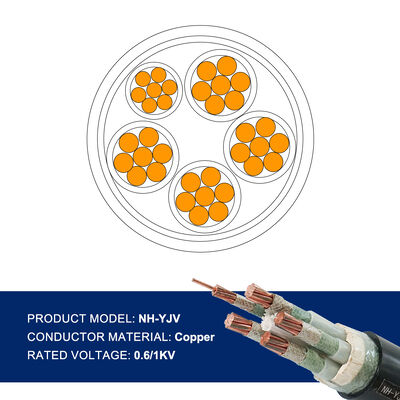

| Core Configurations | 2-5 core; 3+1; 3+2; 4+1 |
| Cross-Section Range | 1.5-240 mm² |
| Installation Ambient Temp | ≥0°C (preheating recommended below 0°C) |
| Minimum Bending Radius | Single-core ≥20*OD; multi-core ≥15*OD |
| Typical Installation Methods | Tray / conduit / trench / direct burial (project-dependent; variant recommended for burial) |
NH = Fire-resistant property (Class N; maintains power supply in fire testing conditions)
YJ = XLPE insulation
V = PVC sheath
To get the right quote and compliance documents, send:
Available with shipment (or pre-bid request):
No. Flame-retardant focuses on limiting flame spread; fire-resistant focuses on keeping the circuit working under fire conditions. NH-YJV is designed for circuit integrity requirements.
It refers to compliance with GB/T 19666-2019 fire resistance classification, supporting continuous power capability during the specified fire test duration.
Yes—its XLPE insulation supports continuous conductor temperature up to 90°C under normal operation.
Designed to provide circuit integrity for ≥ 90 minutes under Class N fire test requirements.
For burial or higher mechanical risk, NH-YJV22 armored is typically recommended. Final selection should match the installation environment and protection requirements.
Standard multi-core 2-5 cores, plus mixed-core builds such as 3+1 / 3+2 / 4+1, depending on project needs.
Common range is 1.5-240 mm², covering lighting circuits through heavy feeders.
Minimum is ≥ 20*OD for single-core and ≥ 15*OD for multi-core, helping prevent internal damage during pulls and turns.
Yes—core count, cross-section, armoring choice, and flexibility structures can be tailored while keeping national-standard compliance and documentation.
This series is for 0.6/1 kV AC distribution systems used widely in buildings and industrial facilities.
In many operating conditions, XLPE's electrical and thermal properties help reduce degradation and support better long-run performance; many projects see measurable improvements when cables run hot for long durations.
Model + cores + mm² + length + installation method + required documents/standards.
Service of JinHong Company
Over Productions Service:
JinHong has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.
Quality Certification Services:
JinHong cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your needs.
Profession Customer Service:
JinHong provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
Delivery And Shipping Services:
While we at JinHong provide high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.
Packaging of JinHong:
JinHong cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
