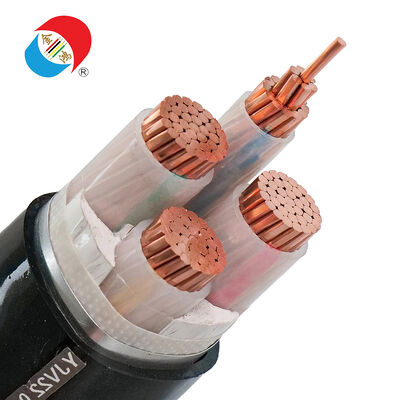

8.7/15kV Armoured Power Cable YJV22 Copper Conductor Steel Tape Armor

Name: 8.7/15kV Armoured Power Cable YJV22 Copper Conductor Steel Tape Armor
Brand: Foshan Jinhong Import And Export Co., Ltd.
SKU: YJV22
Price: 1.20 USD
Availability: InStock

Brand Name:	JinHong
Model Number:	YJV22
MOQ:	100m
Price:	1.2-1.99USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Anhui China

Application:

Underground,Industrial,Construction,overhead,Power Station

Jacket:

PVC,Non,no Jacket,PVC Or XLPE,PVC/PE

Insulation Material:

XLPE,PVC,Rubber,XLPE(XLPO),xlpe Or Pvc

Conductor Material:

Copper,Aluminum,steel Core Aluminum Strand,copper/aluminium,tin Plated

Type:

Low Voltage,Medium Voltage,High Voltage,Insulated,Rigid/Flexible Round

Standard:

IEC60502,IEC,BS,UL,JIS

Color:

Black,Red,blue,brown,Requirement

Product Name:

Medium Voltage Power Cable,Fire Resistant 4core LV Armoured Electrical Cable XLPE Copper Cable,XLPE PVC Insulated PVC Sheathed 4 Core Copper Power Cable,steel Tape Armoured Cable,Aerial Bundled Cable

Conductor:

Copper,Alulminum,Class 2 Annealed Copper Strands,Cu / Al,strand

Insulation:

XLPE,XLPE PE PVC,PVC,PE,XLPE/PE/PVC

Rated Voltage:

0.6/1KV,3.6~35kv,8.7/10,3.6/6.6,6/10

Voltage:

0.6/1KV,low Voltage,medium Voltage,300/500V,450/750V

Core:

1 Core,5 Core,duplex/triplex/quadruplex,3,Single

Sheath:

PVC,ZR-PVC,LSOH,Non-sheath,PE

Packing:

Wooden Drum,optional,Wooden-steel Drum

Conductor Type:

Stranded,copper

Name:

11KV SWA FIRE RETARDANT CABLE,welding Cable,JKLGYJ 1KV Overhead Power Cables

Armour:

Steel Wire Or Aluminum Wire Armor,Steel Tape Armour,STA/SWA/ATA/AWA,or Unarmored

Item:

XLPE Copper Cable,Medium Voltage XLPE Cable

Highlight:

8.7/15kV Armoured Power Cable

Armoured Power Cable YJV22

YJV22 Copper Conductor

Product Description

YJV22 Armoured Power Cable Copper Conductor Steel Tape Armor 8.7/15kV Applications

YJV22 Armored Power Cable - 8.7/15kV Copper Conductor

YJV22 is an XLPE insulated, PVC sheathed, steel tape armored power cable with copper conductors, engineered for robust power distribution in demanding environments requiring superior mechanical protection and reliability.

Cable Construction Breakdown

YJ: XLPE (Cross-Linked Polyethylene) Insulation
V: PVC Sheath
22: Double Steel Tape Armor

Applications

Underground Power Networks: Direct burial in industrial sites, renewable energy farms, and urban infrastructure
Industrial Plants: Wiring for motors, transformers, and machinery in high-stress or corrosive environments
Critical Infrastructure: Subways, tunnels, bridges, and power stations requiring mechanical protection
Outdoor Installations: Cable trenches and fixed routing with protection against environmental damage

Key Advantages

Mechanical Robustness: Steel tape armor resists crushing, impact, and rodent attacks
High Performance: Copper conductor and XLPE insulation ensure efficient power transmission
Durability: Suitable for harsh environments, including direct burial and industrial settings
Versatility: Available in single-core/multicore designs with customizable conductor sizes (1.5-1000 mm²)

Technical Specifications

Nominal Sectional Area (mm²)	Insulation Thickness (mm)	Sheath Thickness (mm)	Approx. Diameter of Cable (mm)
3*25	3.4	1.3	48.34
3*35	3.4	1.3	50.70
3*50	3.4	1.4	53.48
3*70	3.4	1.5	57.55
3*95	3.4	1.5	60.77
3*120	3.4	1.6	64.41
3*150	3.4	1.7	67.93
3*185	3.4	1.7	71.91
3*240	3.4	1.8	77.49
3*300	3.4	1.9	83.06
3*400	3.4	2.0	90.46
3*500	3.4	2.2	99.47

Frequently Asked Questions

What does YJV22 stand for?

YJ: XLPE (Cross-Linked Polyethylene) Insulation
V: PVC (Polyvinyl Chloride) Sheath
22: Double Steel Tape Armor (first '2' for steel tape, second '2' for PVC outer serving)

YJV22 is an armored power cable with copper conductors, designed for fixed installations requiring mechanical protection.

What is the main purpose of the steel tape armor?

The double steel tape armor provides superior mechanical protection against:

Crushing from heavy loads or backfill (essential for direct burial)
Impact and physical damage during or after installation
Rodent and termite attacks

It allows the cable to be installed in harsh environments without additional conduits.

What are the standard voltage ratings?

Low Voltage (LV): 0.6/1 kV (Most common for building and industrial power distribution)
Medium Voltage (MV): 6/10 kV, 8.7/15 kV, 12/20 kV (For primary power distribution in grids and large facilities)

Where should I use YJV22 cable?

It is ideal for installations where cables are exposed to mechanical stress, including:

Direct Burial in ground or cable trenches
Industrial Plants, mines, and manufacturing facilities
Infrastructure Projects like tunnels, bridges, and subways
Cable Trays or Ducts in areas with high risk of impact

What are the key installation guidelines?

Bending Radius: Minimum of 12 times the cable diameter (for multi-core) to avoid damaging armor and insulation
Grounding: Steel armor must be properly grounded at both ends for electrical safety
Pulling Tension: Use careful tension control to avoid armor distortion
Corrosion: Suitable for most soils, but additional protection may be needed in highly corrosive environments

What is the temperature rating?

Maximum Conductor Temperature (Continuous): 90°C (due to XLPE insulation)
Short-Circuit Withstand: 250°C (for maximum 5 seconds)
Installation Temperature: Should be ≥ 0°C to prevent PVC sheath from cracking

What is the packaging method for this type of cable?

Iron-Wood Cable Reel Packaging

Is YJV22 fire-resistant?

No. The standard YJV22 is not fire-resistant. Its primary function is mechanical protection. The PVC materials will burn and it will not maintain circuit integrity in a fire.

For fire safety, you need NH-YJV22 (Fire-Resistant) or WDZN-YJV22 (Fire-Resistant + Low Smoke Halogen Free).

What standards does it comply with?

International: IEC 60502-1 (for 0.6/1 kV) and IEC 60502-2 (for MV cables)
National (China): GB/T 12706.1-2020
Other: Can be manufactured to meet BS (UK), VDE (Germany), or other regional standards

How do I select the right YJV22 cable?

Specify these key parameters:

Voltage Rating (e.g., 0.6/1 kV)
Conductor Size & Number of Cores (e.g., 3x150mm² for a 3-phase circuit)
Length
Special Requirements: If needed, specify a variant like ZC-YJV22 (Flame-Retardant) or NH-YJV22 (Fire-Resistant)
