WDZ-BYJ 2.5mm2 XLPE LSZH Cable Insulated For High Rise Building

Name: WDZ-BYJ 2.5mm2 XLPE LSZH Cable Insulated For High Rise Building
Brand: Foshan Jinhong Import And Export Co., Ltd.
SKU: WDZ-BYJ
Price: 0.30 USD
Availability: InStock

Brand Name:	JinHong
Model Number:	WDZ-BYJ
MOQ:	100m
Price:	0.3-1USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Anhui China

Conductor Type:

Stranded,Solid,Solid/Flexible

Conductor Material:

Copper,etc.,Fiberglass With Nichrome Wire,solid Or Stranded Tinned Copper,Copper | Tinned Copper

Application:

Heating,Electric Conduction,Lights And Lamps,Electric Appliance,AWM Appliance Wiring Material

Type:

Insulated,Bare

Insulation Material:

Rubber,PVC,Silicone,fiber Glass,XLPE

Color:

Requirement,Yellow,can Be Customized,red Black,White/Blue/Red/Black/Brown/Yellow/Green/Transparent

Rated Voltage:

600V,300/500V,300/500V 450/750V

Product Name:

Copper Core PVC Insulation Wire,DIY Silicone Wire,anchor Silicone Copper Electric Wire 220v 3 Wire Flat Cable,silicone Rubber Electrical Wire Cable For Neon Lighting,XLPE Irradiation Wire

Conductor:

Copper Core,Tinned Copper,fiberglass Nichrome Conductor Wire,Stranded Copper,Silver & Tinned & Nickel Copper

Insulation:

Silicone Rubber,Silicone Insulation,PVC Insulation Cable,PVC,XLPE

Size:

Optional,18awg/22awg,30AWG - 4/0AWG,24awg~12awg,2-30

Rated Temperature:

200,-60C-+200C,+200℃,-60~ 200,-60'C ~ + 180'C

Packing:

305meters Per Roll,100m/roll,100 Pieces / Bag,305/610m Per Roll,optional

Material:

Silicone Rubber,silicone Wire,High Purity Copper,Tinned Copper

Standard:

UL758,IEC 60227,GB IEC JIS NEMA,IEC60502

Temperature:

150 Degree,-60℃ To 200℃,200degree,-60C~+150C

Length:

Optional,100mm,Customized Length,610m

Usage:

Heating Element,Indoor,Heating Product

Test Voltage:

3000V

Highlight:

2.5mm2 XLPE LSZH Cabl

WDZ-BYJ XLPE LSZH

High Rise Building LSZH Cable

Product Description

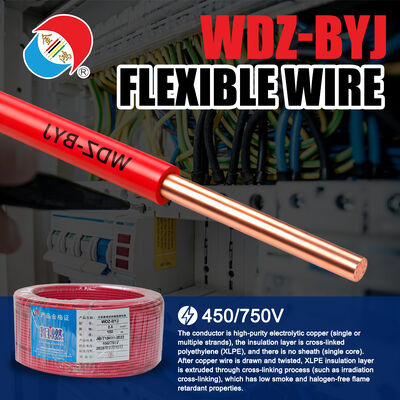

WDZ-BYJ 2.5mm² XLPE Cable - Low Smoke Halogen-Free Flame Retardant

WDZ-BYJ is a Low Smoke Zero Halogen (LSZH) Flame-Retardant Polyethylene Insulated Copper Wire, designed for fixed electrical installations in environments requiring high fire safety and environmental protection.

Cable Designation Breakdown

W: Low Smoke
D: Halogen-Free
Z: Flame Retardant
BYJ: Cross-Linked Polyethylene Insulated Copper Wire

Applications

Building Wiring: Fixed electrical circuits in residential, commercial, and industrial buildings
Public Spaces: Hospitals, schools, shopping malls, and subways
Energy Systems: Solar power installations and battery storage systems
Control Systems: Wiring for automation and control panels

Key Advantages

Enhanced Safety: Halogen-free and low smoke properties protect personnel and equipment
High Temperature Resistance: XLPE insulation ensures reliable performance under high loads
Environmental Friendliness: No toxic emissions during fire incidents
Compliance: Meets international standards for fire safety and environmental protection

Technical Specifications

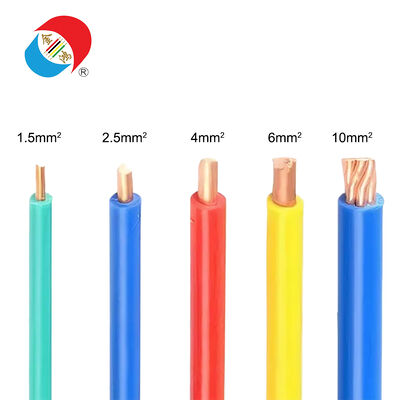

Nominal Section (mm²)	Number/Diameter of Core (mm)	Maximum Outer Diameter (mm)	Reference Weight (kg/km)
1.5	1/1.38	3.3	18.5
2.5	1/1.78	3.9	29
4	1/2.25	4.4	40
6	1/2.76	4.9	66
10	7/1.35	6.8	90
16	7/1.70	8.0	130
25	19/1.33	9.8	205
35	19/1.50	11.0	270
50	19/1.80	13.0	370
70	19/2.14	15.0	490
95	19/2.50	17.0	630
120	37/2.00	19.0	780
150	37/2.25	21.0	950
185	37/2.50	23.5	1150

Frequently Asked Questions

What does WDZ-BYJ stand for?

W: Low Smoke
D: Halogen-Free
Z: Flame Retardant
BYJ: Fixed Wiring Cable with XLPE Insulation

It is a halogen-free, flame-retardant, low-smoke emission building wire with XLPE insulation and a copper conductor, designed for safe and environmentally friendly fixed electrical installations.

What are the three key safety features (WDZ)?

This cable is defined by a triple safety combination crucial for human safety:

Low Smoke (W): Emits minimal optical smoke when exposed to fire, maintaining visibility for safe evacuation
Halogen-Free (D): Produces no toxic or corrosive acidic gases when burning, preventing harm to people and equipment
Flame Retardant (Z): Inhibits the spread of flame along the cable

Where is WDZ-BYJ cable typically required or recommended?

It is mandated or strongly advised in public buildings and spaces with high occupancy or critical functions where fire safety is paramount, such as:

Subways, airports, train stations, and tunnels
Hospitals, schools, and shopping malls
High-rise buildings, hotels, and data centers
Emergency lighting and alarm system circuits

What are the key advantages of XLPE (BYJ) insulation over standard PVC?

Higher Temperature Rating: 90°C continuous operating temperature (vs. 70°C for PVC), allowing for higher current carrying capacity
Better Aging Resistance: More stable and durable over the long term
Excellent Dielectric Strength

What are the standard voltage and temperature ratings?

Rated Voltage: 450/750V
Long-term Operating Temperature: 90°C
Short-circuit Withstand Temperature: Up to 250°C (for max 5 seconds)

Is WDZ-BYJ cable fire-resistant (able to maintain circuit integrity during a fire)?

No, it is not. It is Flame-Retardant (Z). Its primary function is to not propagate fire and to minimize hazardous smoke and fumes. For circuits that must continue to operate during a fire (e.g., critical fire alarm paths), you need a Fire-Resistant (NH-) cable, such as NH-BYJ or WDZN-BYJ.

Can it be used outdoors or for direct burial?

No. Standard WDZ-BYJ is designed for fixed indoor installations in conduits, trunking, or on cable trays. It is not suitable for direct burial, prolonged UV exposure, or wet locations without additional protection. Its LSZH sheath is for fire safety, not for prolonged outdoor weathering.

What international standards and certifications does it comply with?

It is designed to meet stringent international safety standards:

Halogen-Free: IEC 60754-1
Low Smoke Density: IEC 61034
Flame Retardancy: IEC 60332-1
Cable Construction: IEC 60502-1 or IEC 60227
Common Certifications: CE, CPR (Construction Products Regulation) Euroclass (e.g., B2ca, Cca-s1a,d1,a1)

Why choose WDZ-BYJ for a building project?

Choose WDZ-BYJ when your project's safety philosophy prioritizes the protection of human life and critical infrastructure from fire-related hazards (smoke inhalation, corrosive gas damage). It is the responsible, modern choice for ethical construction in public and commercial spaces, aligning with green building principles and stringent safety codes.
