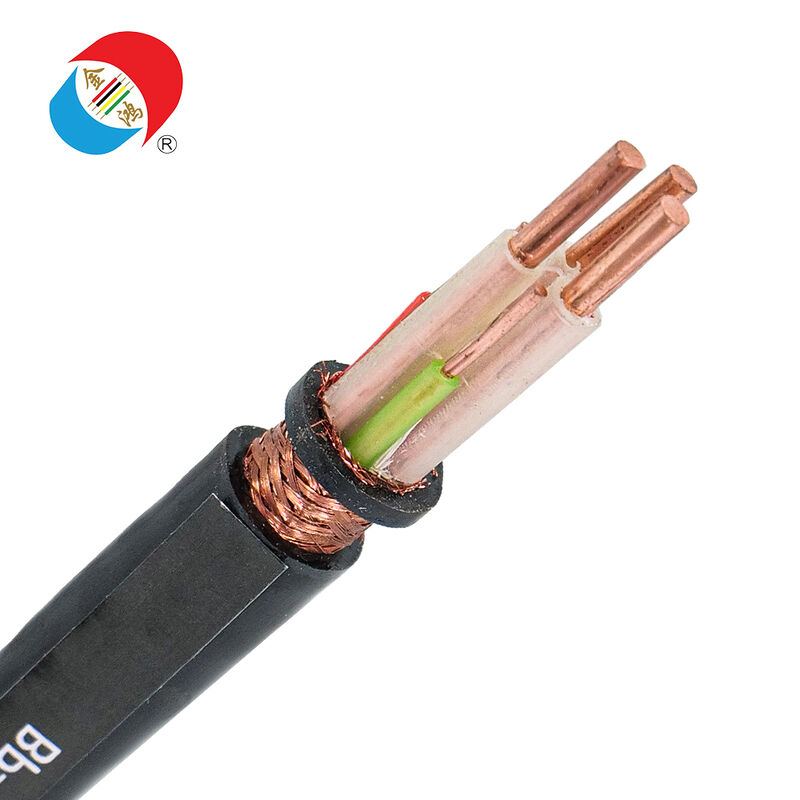

BPYJVP Variable Frequency Drive Cable 220V 380V XLPE VFD Cables

Name: BPYJVP Variable Frequency Drive Cable 220V 380V XLPE VFD Cables
Brand: Foshan Jinhong Import And Export Co., Ltd.
SKU: BPYJVP
Price: 1.25 USD
Availability: InStock

Brand Name:	JinHong
Model Number:	BPYJVP
MOQ:	100m
Price:	1.25-3.15USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Anhui China

Input Voltage:

220V,380V,220/380V,380V±15%,220V/380V/440V/690Vac

Weight:

3.5KG,3KG~300KG,2.16KGS--160KGS,different,As Per Unit

Output Type:

Triple,Multiple

Type:

DC/AC Inverters,AC,Other,frequency Inverter,AC To AC Inverter

Output Current:

2.7A-605A,176A,Load,different,0-883A

Output Voltage:

0-380V,220/240,220/380V,AC220V,220V

Size:

170*125*162--600*800*2000,As Per Unit,135*240*173mm,super Mini,150*110*190MM

Output Frequency:

50Hz/60Hz,0-400HZ,0.01-600HZ

Output Power:

1 - 200KW,1 - 50W,1hp 0.75KW,0.75kw-315kw,125hp 90kw

Warranty:

2 Years,12 Months,18 Months,16 Months

Product Name:

AC Frequency Inverter,Variable Frequency Drive 10HP 34A 220-250V 7.5KW VFD Inverter On Sale,electric Motor Inverter,vfd,FST-500 Mini Size SVC Frequency Inverter

Color:

Black,Grey,White

Application:

Industry,Water Pump,Compressor,Fan,ac Motor Drive

Protection:

IP20,Overload,Overvoltage,Short Circuit

Display:

LED,LCD

Rated Power:

90kw 125hp,0.75kw Vfd,11 KW

Control Mode:

V/F Control Vsd,V/F

Name:

VFD

Overload:

150%- 60s,1.5 * Rated Current For 1 Min,180%- 3s

Highlight:

BPYJVP Variable Frequency Drive Cable

Variable Frequency Drive Cable 220V

380V XLPE VFD Cables

Product Description

BPYJVP Frequency Conversion Control Cable Stable Precise Signal Transmission EMI/RFI Suppression

BPYJVP Control Cable: Stable Signal Transmission for Industrial Automation

BPYJVP is a high-performance instrumentation and control cable engineered for precise signal transmission in environments with electromagnetic interference. This cable delivers exceptional signal stability and anti-interference capabilities for critical industrial applications.

Cable Construction Breakdown

BP: Flexible multi-strand conductor (B) with braided overall shield (P)
YJ: Cross-linked polyethylene (XLPE) insulation
V: Polyvinyl chloride (PVC) inner sheath or bedding layer
P: Overall braided shield (typically tinned copper)

Applications

Ideal for analog/digital signal transmission, measurement systems, process control, and industrial automation applications requiring high anti-interference capability and signal stability. The combination of XLPE insulation and braided shielding ensures low capacitance, high insulation resistance, and effective suppression of electromagnetic and radio frequency interference (EMI/RFI).

Technical Specifications

Cross-sectional Area (mm²)	Conductor Structure	Maximum Outer Diameter (mm)
3*1.5	1/1.38	12.5
3*2.5	1/1.78	13.5
3*4	1/2.25	15.0
3*6	1/2.76	16.5
3*6	1/2.76	16.5
3*10	7/1.35	19.0
3*16	7/1.70	22.0
3*25	7/2.15	25.0
3*25	7/2.52	27.0
3*50	10/2.52	29.5
3*70	14/2.52	32.5
3*95	19/2.52	37.5
3*120	24/2.52	41.0

Product Images

Frequently Asked Questions

What is the rated voltage of the BP-YJVP cable?

The BP-YJVP cable is available in multiple voltage ratings, including low voltage (0.6/1kV), medium voltage (3.6/6kV, 6/10kV), and high voltage (35kV and above). The rated voltage varies based on specific application requirements.

What materials are used in the construction of BP-YJVP cables?

BP-YJVP cables feature copper or aluminum conductors with cross-linked polyethylene (XLPE) or PVC insulation. The outer sheath is typically made of PVC or flame-retardant material, providing durability and environmental protection.

Can the BP-YJVP cable be used outdoors?

Yes, BP-YJVP cables are suitable for outdoor use, especially when equipped with UV-resistant and weatherproof outer sheathing. They withstand exposure to sun, rain, and varying temperatures.

What is the temperature range of the BP-YJVP cable?

The BP-YJVP cable operates within a temperature range of -40°C to +90°C, making it suitable for both hot and cold climates.

Is the BP-YJVP cable fire-resistant?

Yes, BP-YJVP cables meet international fire safety standards such as IEC 60332, ensuring flame-retardant properties to minimize fire risk.

What are the common applications of BP-YJVP cables?

BP-YJVP cables are used in industrial power distribution, building wiring, underground cables, utility systems, power plants, mining operations, and infrastructure projects.

Can BP-YJVP cables be customized according to customer specifications?

Yes, BP-YJVP cables can be customized based on specific requirements including cable length, conductor size, voltage rating, insulation material, and color.

How resistant is the BP-YJVP cable to corrosion?

BP-YJVP cables are designed with corrosion-resistant materials, making them ideal for moisture-prone or chemical environments such as marine, mining, and industrial settings.

What certifications does the BP-YJVP cable have?

BP-YJVP cables are certified to meet international standards including CE, UL, IEC, and ISO9001, ensuring high-quality, safety, and environmental compliance.

How durable is the BP-YJVP cable in harsh environments?

BP-YJVP cables are highly durable with enhanced mechanical strength to withstand tension, pressure, and abrasion in construction sites, heavy industry, and underground applications.

Installation Note: Proper installation practices, including correct shield grounding and separation from interference sources, are essential for optimal performance. For higher EMI environments, consider BPYJVP2 with individual pair shielding.
