Cable de carga pesada YJV22 Cables blindados de alta capacidad para circuitos de potencia principales
YJV22 3×240+1×120 0.6/1kV Power Cable The YJV22 3×240+1×120 0.6/1kV is a large-section, four-core, low-voltage steel-tape armored power cable designed for heavy-duty three-phase, four-wire AC 0.6/1kV, 50Hz power distribution systems. It features high-purity compacted copper conductors, cross-linked polyethylene (XLPE) insulation, a PVC inner sheath, double-layer hot-dip galvanized steel tape armor, and a high-strength modified PVC outer sheath. The configuration of three
Cable YJLV22 MV de trabajo pesado con protección mecánica superior para condiciones de colocación adversas
The YJLV22 8.7/15kV is a classic 10kV medium-voltage steel-tape armored power cable, featuring a pure aluminum conductor, cross-linked polyethylene (XLPE) insulation, and a PVC outer sheath. It has a rated voltage of 8.7/15kV and a maximum system voltage of 17.5kV. This product utilizes a mature multi-layer composite structure, integrating excellent electrical performance, robust mechanical protection, and broad environmental adaptability. Unlike aluminum alloy and low-smoke
LSZH Retardante de llama de aluminio aleación de acero alambre blindado MV cable para la red urbana y infraestructura verde
WDZ-YJLHY23 is an energy-saving and environmentally friendly 8.7/15kV medium-voltage power cable, manufactured strictly in accordance with IEC 60840 and international medium-voltage power engineering design standards. It utilizes high-performance AA8000 series compact stranded aluminum alloy conductors, high-purity XLPE cross-linked polyethylene insulation, a low-smoke halogen-free inner buffer layer, and a 23-type high-density steel wire armor structure, complemented by a
Cable blindado de transmisión de energía de subestación subterránea de cable MV LSZH para proyectos críticos de seguridad contra incendios
WDZBN-YJY73 is a high-grade fire-resistant and safe medium-voltage power cable with a rated voltage of 8.7/15kV, manufactured strictly in accordance with IEC, IEEE, and international medium-voltage transmission design standards. It employs oxygen-free copper conductors, cross-linked polyethylene insulation, a low-smoke halogen-free inner sheath, high-density steel wire armor, and a WDZBN-grade fire-resistant outer sheath, integrating fire resistance, low-smoke halogen-free
Cable de alta fiabilidad de 10 kV YJV22 para proyectos críticos de distribución de energía
The YJV22 8.7/15kV is a mainstream 10kV medium-voltage power cable, covering the entire application range of power systems from 6kV to 10kV. It uses high-purity compacted copper conductors, cross-linked polyethylene (XLPE) main insulation, a multi-layer semi-conductive shielding system, a PVC inner sheath, double-layer hot-dip galvanized steel tape armor, and a high-performance modified PVC outer sheath. With a rated voltage of 8.7/15kV and a maximum system voltage of 17.5kV,
Cable YJLV22 de alta resistencia mecánica para instalación enterrada, en zanjas y en bandejas de cables
YJLV22 (0.6/1kV) is a widely used conventional low-voltage armored power cable, featuring stranded pure aluminum conductors, cross-linked polyethylene (XLPE) insulation, a PVC inner sheath, hot-dip galvanized steel tape armor, and a PVC outer sheath. This cable is specifically designed for 50Hz AC 0.6/1kV power distribution systems, boasting a mature and streamlined structure that combines reliable electrical performance, excellent mechanical protection, and strong environmen
Cables de alta durabilidad YJLHV22 para proyectos eléctricos municipales, industriales y comerciales
YJLHV22 Low-Voltage Power Cable YJLHV22 is a low-voltage power cable featuring 8000 series aluminum alloy conductors, a low-smoke halogen-free flame-retardant insulation sheath, and a 22-type galvanized steel tape armored structure. Rated at 0.6/1kV, it was specifically developed to meet the dual demands of modern engineering projects in terms of power transmission safety, mechanical protection, environmental protection, and cost control. Unlike traditional copper and
Cable aislado XLPE confiable YJLV22 para distribución de energía civil e infraestructura
YJLV22 0.6/1kV Low-Voltage Steel-Tape Armored Power Cable YJLV22 is a widely used 0.6/1kV low-voltage steel-tape armored power cable, featuring an aluminum conductor and cross-linked polyethylene (XLPE) insulation. It employs a mature composite structure, including a solid aluminum conductor, a high-performance XLPE insulation layer, an inner sheath, galvanized steel tape armor, and an outer PVC sheath. Unlike alloy conductor cables and low-smoke halogen-free (LSZH) series
Cable LSZH de alta seguridad 8.7/15kV YJLHV22 y blindado para infraestructura crítica
YJLHV22 (8.7/15kV) is a medium-voltage (MV) power cable designed specifically for 10kV distribution networks. It features 8000 series aluminum alloy conductors, cross-linked polyethylene (XLPE) insulation, copper tape shielding, galvanized steel tape armor, and a low-smoke halogen-free (LSZH) outer sheath. Rated at 8.7/15kV (Um=17.5kV), it is designed for applications such as urban power grids, industrial parks, critical public utilities, and renewable energy projects,
Cable de alimentación enterrado sin halógenos YJLHV22 con retardo de llama y bajo humo
YJLHV22 is a high-performance, low-smoke, halogen-free, flame-retardant aluminum alloy conductor steel tape armored power cable with a rated voltage of 0.6/1kV. Designed for reliable power transmission and distribution, this cable utilizes high-quality 8000 series aluminum alloy conductors, a low-smoke, halogen-free insulation sheath, and robust steel tape armor. It stands out among traditional power cables due to its superior conductivity, excellent mechanical protection,
WDZ-YJY23 XLPE LSZH Cable de 3 núcleos Cable blindado de 16 mm para uso subterráneo
WDZ-YJY23 LSZH XLPE STA Armored LV Cable 0.6/1kV for Underground Projects WDZ-YJY23 Product Overview WDZ-YJY23 is a low-voltage copper core power cable designed for fixed installation environments that meet underground laying and fire safety regulations. It features cross-linked polyethylene (XLPE) insulation for reliable low-voltage distribution; steel tape armor (STA) enhances its resistance to external pressure and laying stress; and the outer sheath is made of low-smoke
El sistema de alimentación se utiliza para el suministro de agua a las instalaciones de alimentación.
YJLHV22 Aluminum XLPE PVC STA Armored Cable 0.6/1kV for Underground Feeders YJLHV22 is a low-voltage aluminum core power cable designed for cost-effective power distribution with enhanced mechanical protection. It typically consists of an aluminum core conductor, cross-linked polyethylene (XLPE) insulation, and a steel tape armor (STA) layer, all sheathed with polyvinyl chloride (PVC). This construction is widely used in underground and protected fixed installations where
Cable XLPE STA Resistente a la Llama 1.5mm2 a 400mm2 ZR-YJV22 Impermeable
ZR-YJV22 Flame-Retardant XLPE Copper STA Armored Power Cable 0.6/1kV When your project requires both the robustness of underground installations and flame retardancy, the ZR-YJV22 is an ideal upgrade. It combines copper core conductivity, XLPE insulation, steel tape armor for conductor protection, and a flame-retardant PVC sheath system to help limit the spread of flames along cable routes within buildings and industrial installations. Product Overview The ZR-YJV22 is a low
Cable blindado con cinta de acero de 1.5mm2 a 1000mm2 WDZ-YJY23 LSZH XLPE
WDZ-YJY23 LSZH XLPE Steel Tape Armored Cable 0.6/1kV for Underground WDZ-YJY23 WDZ-YJY23 is a low-smoke halogen-free (LSZH) sheathed, cross-linked polyethylene (XLPE) insulated, and steel-tape armored low-voltage power cable designed for fixed installations with complex routing and clearly defined safety requirements. It is suitable for underground and protected distribution lines requiring additional resistance to external stresses, while reducing smoke emissions and the
WDZ-YJY23 LSZH XLPE STA Cable de alimentación blindado 0.6/1kV para alimentaciones subterráneas
WDZ-YJY23 LSZH XLPE STA Armored Power Cable 0.6/1kV for Underground Feeds Product Overview WDZ-YJY23 is a low-voltage copper core power cable designed for fixed installations, meeting two key requirements: Low Smoke Halogen-Free (LSZH) safety, reducing smoke and corrosive halogen gas emissions in fire scenarios; Steel Tape Armor (STA) protection, enhancing the cable's ability to withstand external stresses in underground or mechanically sensitive lines; WDZ-YJY23 is widely
ZC-VV22 Cable de energía retardante de llama Cable eléctrico blindado PVC STA
ZC-VV22 Flame-Retardant PVC STA Armored Cable 0.6/1kV for Fixed Wiring Upgraded standard armored cable with a flame-retardant construction. The ZC-VV22 is designed for fixed installations requiring basic fire resistance and line protection, making it ideal for contractors supplying cables for underground conduits, protected trenches, and dense cable runs in buildings and industrial sites. Product Overview The ZC-VV22 is a low-voltage power cable typically featuring copper
0.6/1kV a 33kV XLPE Cable blindado de PVC YJLHV22 Impermeable IEEE
YJLHV22 XLPE PVC Armored Cable 0.6/1kV for Underground Distribution YJLHV22 YJLHV22 is a low-voltage aluminum core power cable optimized for underground and protected fixed installation environments, particularly suitable for applications requiring both cost control and mechanical protection. It typically features a stranded aluminum core conductor insulated with cross-linked polyethylene (XLPE) and equipped with a steel tape armor (STA) layer for enhanced compressive
Cable YJV22 STA para redes de alimentación subterráneas 0.6/1kV XLPE con armadura de cobre
YJV22 Copper XLPE STA Armored Cable 0.6/1kV for Underground Feeder Networks When your low-voltage lines are laid underground, protection becomes an integral part of their performance. YJV22 cable combines copper conductors, cross-linked polyethylene (XLPE) insulation, and steel tape armor to ensure your feeders remain reliable in conduits, cable trays, and protected trenches. YJV22 cable is ideal for projects requiring armored low-voltage cable but not necessarily low-smoke
STA Cable de alimentación subterránea YJV22 Cable eléctrico blindado de cobre XLPE
YJV22 Copper XLPE STA Armored Cable 0.6/1kV for Underground Power Routes Build more robust low-voltage lines with YJV22. This copper-core XLPE power cable features steel tape armor, effectively resisting compression and external pressures in conduits and protective trenches. If your project requires a practical, durable, easy-to-install, and electrically stable underground feeder cable, YJV22 is the ideal choice. Product Overview YJV22 is a 0.6/1kV low-voltage power cable
Cable blindado YJV22 XLPE de 35 kV 0.6/1 kV, unipolar o multipolar
YJV22 Armored Copper XLPE Cable 0.6/1kV for Underground Power Distribution YJV22 is a steel-tape armored low-voltage copper core power cable designed for fixed installation environments, suitable for applications where the cable must withstand higher mechanical stresses than standard cable tray wiring. It is commonly used in underground conduits, cable trenches, protective trenches, and building access lines, where cables must withstand backfill soil compression, line loads,
Cable Armado YJV22 0.6/1kV para Redes Eléctricas en Conductos y Zanjas
YJV22 Copper XLPE Steel Tape Armored Cable 0.6/1kV for Ducts and Trenches YJV22 is a low-voltage copper core power cable designed for stationary installations requiring stronger protection than unarmored feeders. It features cross-linked polyethylene (XLPE) insulation for stable electrical performance, combined with steel tape armor for enhanced resistance to external pressure and mechanical stress in protected underground lines. The PVC outer sheath enhances abrasion
Cable de alimentación YJV22 STA Cable eléctrico blindado Resistente al agua
YJV22 STA Armored XLPE Copper Cable 0.6/1kV for Protected Underground Runs YJV22 is a low-voltage copper core power cable designed for fixed installations, particularly suitable for applications requiring path protection. It combines cross-linked polyethylene (XLPE) insulation with steel tape armor (STA), enhancing the cable's ability to withstand external pressure and installation stresses in environments such as conduits, trenches, and underground passages. The PVC outer
Cable eléctrico blindado de 600V a 35kV 0,6 1kV XLPE Cable de cobre YJV22
YJV22 XLPE Copper PVC STA Armored Cable 0.6/1kV for Underground Feeders YJV22 is a low-voltage copper core power cable designed for fixed installations requiring enhanced mechanical protection. It typically features XLPE insulated copper conductors, a steel tape armor (STA) layer for enhanced compressive strength, and a PVC outer sheath for durability in the construction site. This cable construction is widely used in underground conduits, protected trenches, cable corridors,

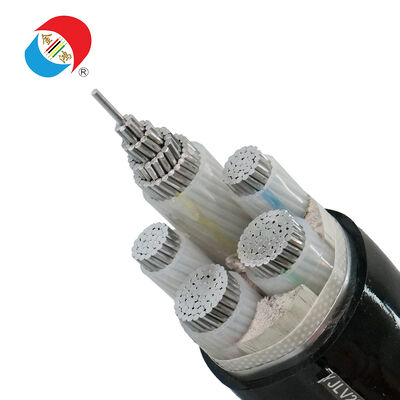

Cable blindado con cinta de acero de PVC XLPE YJLV22 0.6/1kV Cable blindado subterráneo
YJLV22 Al XLPE PVC Steel Tape Armored Cable 0.6/1kV for Underground Use YJLV22 Low-Voltage Armored Power Cable Product Overview YJLV22 is a low-voltage aluminum-core power cable designed for stationary installations requiring enhanced mechanical protection and stable long-distance operation. It typically features stranded aluminum conductors insulated with cross-linked polyethylene (XLPE), a steel tape armor layer for compression resistance, and a durable PVC outer sheath for
