KVVR Flexible PVC Control Cable 450/750V for Instrumentation & Moving Equipment Wiring
Product Summary
Product Details
Flexible PVC Control Cable
,Instrumentation PVC Control Cable 450/750V
,Instrumentation PVC Control Cable
Product Description
Introduction (Marketing-driven + SEO optimization): Mobile industrial control scenarios (robotic arm movement, telescopic conveyors, mobile control cabinets) often lead to fatigue, breakage, or signal loss in ordinary control cables, resulting in equipment malfunctions, production interruptions, and high maintenance costs. KVVR ultra-flexible PVC insulated control cables, featuring a soft stranded conductor design and robust, durable PVC material, are designed to address these pain points. This cable uses high-purity, grade 5 ultra-fine stranded copper conductors, precision PVC insulation, and a reinforced flexible PVC outer sheath, capable of withstanding over 10,000 repeated bending cycles without performance degradation, ensuring stable low-voltage signal transmission, resistance to industrial oils and abrasion, and stable operation within a temperature range of -30°C to 70°C. Certified to EU (CE/RoHS 3.0), North American (UL 1277), Australian (SAA), and Middle East & North Africa (SASO) standards, it is a trusted choice for automated factories, robot system integrators, and mobile industrial equipment manufacturers worldwide.

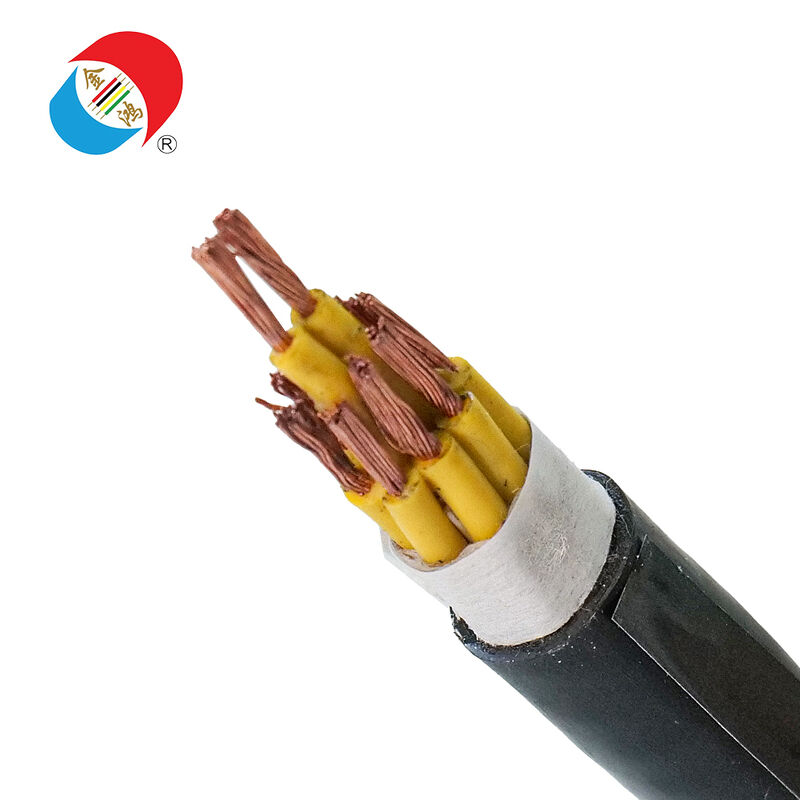

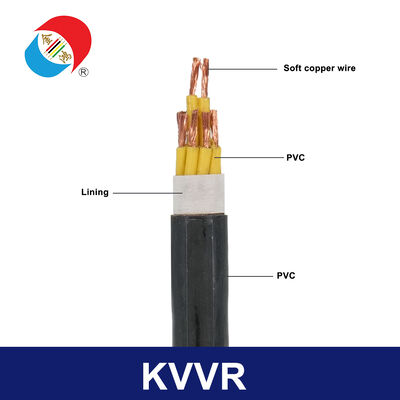

KVVR is a high-performance, low-voltage (0.45/0.75kV) flexible control cable specifically designed for signal transmission and control command delivery in industrial environments characterized by movement or frequent bending. It is used to connect mobile sensors, robot actuators, telescopic machinery, and portable control panels. Its flexible and optimized structure ensures mobility and signal integrity: it features a Class 5 ultra-fine stranded copper conductor (ultra-soft, low resistance, and bend-resistant), a precision PVC insulation layer (excellent dielectric strength, low signal attenuation), and a reinforced flexible PVC outer sheath (core protection layer, oil-resistant, abrasion-resistant, UV-resistant, and resistant to bending fatigue).

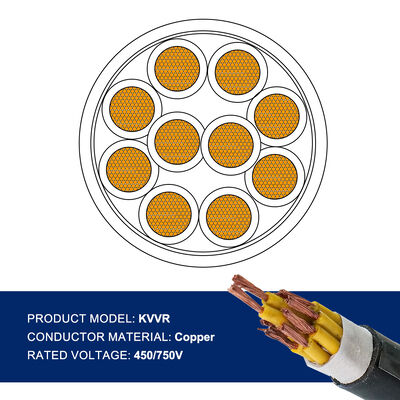

The definition of "KVVR" is: K = Control cable (specifically for industrial control); V = PVC (polyvinyl chloride) insulation; V = PVC outer sheath; R = Flexible stranded conductor (5-pole ultra-fine stranding). Its unique feature is that, unlike standard KVV control cables (1/2-pole conductor), KVVR uses 5-pole ultra-fine stranded copper conductors, reducing bending resistance by 40% and withstanding repeated bending. It is designed specifically for mobile control scenarios rather than fixed cabling, addressing the pain point of cable fatigue failure in dynamic industrial environments—distinguishing it from all non-flexible control cables.
- Ultra-Flexible and Bending-Resistant: The Grade 5 ultra-fine stranded copper conductor can withstand over 10,000 repeated bending cycles (bending radius ≤ 5 times the cable outer diameter), 35% smaller than standard KVV cables. Even in frequent motion scenarios (e.g., robotic arm rotation, telescopic conveyor belt operation), fatigue cracking or conductor breakage will not occur, extending cable life by 50% in mobile automation systems.
- Stable Signal Transmission in Dynamic Scenarios: Utilizing a uniformly thick, low-capacitance (1.5mm² ≤ 180pF/m) precision PVC insulation layer, signal attenuation is minimized even under repeated bending (≤ 1.2% over 100 meters for a 1.5mm² cross-section). This ensures accurate transmission of control commands between mobile devices and the control center, reducing automation error rates by 55%, making it ideal for high-precision robot control and mobile instruments.
- Industrial-grade oil and abrasion resistance: The reinforced flexible PVC sheath, formulated with special oil and abrasion-resistant additives, withstands industrial oils (mineral oils, lubricants), greases, and mechanical friction. Passing 15,000 cycle abrasion tests, it maintains sheath integrity even in high-friction mobile applications (e.g., cables dragged on conveyor belts, robotic arm cable routing). The sheath will not damage or cause signal leakage in harsh industrial environments.
- Suitable for a wide range of global climates (-30°C to 70°C): The flexible PVC sheath is formulated to be freeze-proof, UV-resistant, and salt spray-resistant. It can operate reliably in a variety of environments, including mobile industrial equipment in the Arctic at -30°C, high-temperature workshop robotic systems at 70°C, mobile control panels in the desert at 60°C, and mobile industrial machinery in coastal areas. Resistant to moisture, dust, and weak acids/alkalis, it requires no additional protective housing in most global industrial applications.
- Global mobile automation certifications and compliance: CE/RoHS 3.0 (EU, compliant with EN 50200 and IEC 60228 Level 5 standards), UL 1277 (North America, compliant with NFPA 70 NEC standards), SAA (Australia/New Zealand), SASO (Middle East and North Africa) certifications. We provide customized compliance documentation for mobile automation projects (e.g., bending fatigue test reports, robot system compatibility certificates) to ensure smooth project approval. Popular specifications are readily available (3-day fast shipping) to support urgent mobile automation production line upgrades.
| Model | Common Core Wire Quantity | Common Conductor Cross-sectional Area (mm²) | Rated Voltage | Long-Term Operating Temperature | Key Performance Standards | Key Certifications | Hot Selling Markets |
|---|---|---|---|---|---|---|---|
| KVVR (Global Mobile Industrial Grade) | 4, 5, 6, 7, 8, 10, 12, 14, 16 | 0.75, 1.0, 1.5, 2.5 | 0.45/0.75kV | 70℃ | IEC 60228 Class 5, IEC 60332-1-2, 10,000+ Bending Cycles | CE, RoHS 3.0, IEC 60228 | EU, Western Europe, Asia |
| KVVR (UL Robot Control) Type | 4, 5, 6, 7, 8, 10 | 1.0, 1.5, 2.5, 4 | 600V | 70℃ | UL 1277, UL 1685, Robot Bending Compatibility | UL, cUL, RoHS 3.0 | North America, Mexico |
| KVVR (High Bending Mobile Class) | 4, 5, 6, 8, 10 | 1.5, 2.5, 4, 6 | 0.45/0.75kV | 70℃ | IEC 60228 Class 5, Enhanced Bending Fatigue Resistance (Over 20,000 cycles) | CE, UL, SAA, RoHS 3.0 | Global Robotics and Mobile Automation Market |
Note: All specifications are in stock (fast shipping within 3 days). Bulk orders can be customized with the number of wire cores (up to 37 cores) and cross-sectional area (0.75~6mm²), guaranteeing excellent bending resistance, signal stability, and regional certification. Wire cores are color-coded (compliant with IEC/UL standards) for easy identification in complex mobile cabling.
KVVR cables are specifically designed to meet the signal transmission needs of global mobile industrial automation projects, covering application scenarios in regions with high compliance requirements:
- EU Market: Industrial robot arm control, Automated Guided Vehicle (AGV) wiring, telescopic conveyor control systems, pharmaceutical mobile production line instrumentation (compliant with CE/RoHS 3.0 standards, meets EN 50200 and IEC 61131-2 robot control standards)
- North American Market: Automotive manufacturing robot assembly lines, mobile packaging machinery control, HVAC mobile control panels, food processing mobile equipment instrumentation (UL 1277 certified, compliant with NFPA 70 NEC and IEEE 61010 mobile instrumentation standards)
- Australia and New Zealand: Mining mobile equipment control, coastal mobile processing plant wiring, agricultural machinery mobile automation, portable control systems for remote areas (SAA certified, resistant to salt spray, inland high temperatures, and mining dust)
- Middle East and North Africa Markets: Mobile pump control cables for petrochemical plants in desert areas, portable instrument cables for oil and gas fields, AGV wiring for smart factories, and mobile extruder control cables for plastic processing (SASO certified, heat-resistant, sand-resistant, and oil-resistant).
- Global Mobile Industrial Scenarios: Mobile control for construction machinery, wiring for port crane telescopic booms, mobile monitoring systems for renewable energy, and control cables for emergency rescue equipment (ultra-flexible, bend-resistant, and compatible with all major mobile control systems).
KVVR uses Class 5 ultra-fine stranded conductors (ultra-flexible, capable of withstanding over 10,000 bending cycles), suitable for mobile scenarios; KVV uses Class 1/2 standard stranded conductors (rigid, for fixed wiring). KVVR is suitable for robotic arms, AGVs, and telescopic boom machinery; KVV is suitable for fixed control cabinets and static pipelines—choose according to whether the cable requires repeated bending.
It can withstand over 10,000 repeated bending cycles (bending radius = 5 times cable outer diameter) without conductor breakage or signal attenuation. Our high-bend mobile-grade product (KVVR High-Bend) can withstand over 20,000 cycles and is suitable for high-frequency motion scenarios such as high-speed robotic arms. We provide official bending fatigue test reports for bulk orders.
Yes. Its UV-resistant and moisture-proof flexible PVC sheath is suitable for outdoor mobile scenarios (e.g., outdoor AGVs, mobile outdoor monitoring systems). For long-term outdoor use in heavy rain or high humidity areas, we recommend the KVVR-OW version designed specifically for outdoor environments, which features an enhanced waterproof sheath and UV-resistant additives.
Fully compatible. It is fully compatible with major global PLC brands (Siemens, Rockwell Automation, Mitsubishi, Omron) and robot systems (KUKA, FANUC, ABB). Stable signal transmission and bending resistance ensure seamless communication between the mobile actuator/sensor and the control system. We also provide compatibility test reports for specific robot models for bulk orders.
The minimum order quantity for custom cores (e.g., 18 cores, 24 cores) is 500 meters per specification. For urgent small-batch custom orders (300-500 meters) for robot maintenance or small mobile automation projects, we offer priority production service, guaranteeing delivery within 10 working days for a small surcharge.
Standard KVVRs can operate continuously at 70°C. For high-temperature mobile scenarios (70°C~90°C, such as high-temperature workshop robot arms), we offer the KVVR-H high-temperature version made of heat-resistant PVC material, which maintains flexibility and performance at 90°C and meets the same global standards.
