WDZ-YJY Low Smoke Zero Halogen Power Cable LSZH Flame-Retardant • XLPE Insulation • PE Sheath • Non-Armored Lightweight Design WDZ-YJY is a halogen-free, low-smoke power cable designed for non-direct-burial installations such as conduits, cable trays and overhead routes. It combines a low smoke zero halogen flame-retardant system (WDZ), cross-linked polyethylene insulation, polyethylene outer sheath, and high-purity copper conductors to deliver safer performance in fire

WDZ-YJY23 Armored Cable – Halogen-Free Low Smoke + Steel Tape Armor, Providing Unbreakable Power Guarantee for Underground Industrial Projects Globally No Toxic Smoke | Shock and Compression Resistant | Direct Burial Available | Global Compliance | All-Weather Durability | Reliable Underground Power Underground power cables face catastrophic risks such as mechanical damage, moisture corrosion, and toxic fumes generated during fires. WDZ-YJY23 halogen-free low-smoke steel tape

WDZ-YJY23 is a medium-voltage, low-smoke, halogen-free steel-tape armored fixed-lay power cable with a rated voltage of 26/35kV. It employs a composite structure of all-copper conductor + XLPE insulation + double-layer steel tape armor + modified low-smoke, halogen-free inner padding layer + PE outer sheath, specifically developed for underground direct burial, cable trench, and urban integrated pipe gallery medium-voltage trunk power transmission. Model Code Breakdown WDZ:

YJV22 (0.6/1kV) is a mainstream low-voltage armored power cable, featuring solid/stranded copper conductors, cross-linked polyethylene insulation, and galvanized steel tape armor. Specifically designed for 50Hz AC 0.6/1kV power distribution systems, it integrates high-quality conductive materials, high-performance insulation, and enhanced mechanical protection. Unlike aluminum conductor YJLV22 and alloy conductor cables, this copper core cable boasts superior conductivity,

1. Global and National Compliance Standards This YJV22 medium-voltage cable is manufactured entirely in accordance with the national standard GB/T 12706.3-2020 for medium-voltage power cables, fully complies with international standard IEC 60502-2, and meets European CE LVD and EMC directives, making it suitable for cross-border engineering export projects. All finished cables have undergone comprehensive testing by a third-party type testing organization recognized by the

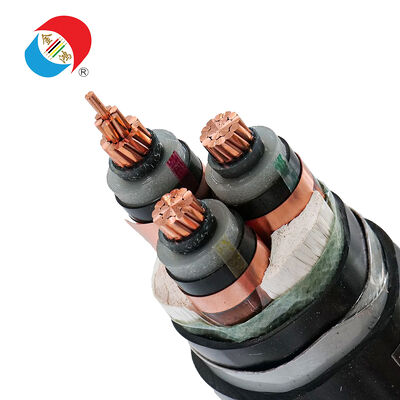

YJV22 8.7/15kV 3×95mm² The YJV22 8.7/15kV 3×95mm² is a three-core medium-voltage armored cable widely used in standard 10kV AC power systems. It has a rated voltage of 8.7/15kV and a maximum system voltage of 17.5kV. It features a compact stranded high-purity copper conductor, multi-layer semi-conductive shielding, thickened cross-linked polyethylene (XLPE) insulation, copper tape metal shielding, a PVC inner sheath, double-layer hot-dip galvanized steel tape armor, and a

Core Technical Parameters: Safety, Environmental Protection, and Quality Fully Controllable Parameter Category Specific Parameters Rated Voltage 0.6/1KV (AC) Conductor Material High-purity oxygen-free copper core (GB/T 3956-2008 Class 2 conductor, conductivity ≥98%) Insulation Material Halogen-free low-smoke cross-linked polyethylene (XLPE), temperature resistance 90℃, insulation resistance ≥200MΩ·km Sheath Material Anti-aging halogen-free low-smoke polyolefin, oxygen index

Core Technical Parameters: Green, Intelligent, and Fully Controllable Quality Parameter Category Specific Parameters Rated Voltage 0.6/1KV (AC) Conductor Material High-purity oxygen-free copper core (GB/T 3956-2008 Class 2 conductor, conductivity ≥98%) Insulation Material Halogen-free low-smoke cross-linked polyethylene (XLPE), temperature resistance 90℃, insulation resistance ≥200MΩ·km Sheath Material Anti-aging halogen-free low-smoke polyolefin, oxygen index ≥35%, abrasion

NH-YJV Fire-Resistant XLPE Power Cable 0.6/1kV for Emergency Circuits Ensure uninterrupted power supply during critical safety times. NH-YJV is a fire-resistant, low-voltage cross-linked polyethylene (XLPE) power cable designed for critical circuits, maintaining power continuity in the event of a fire and supporting life-safety systems and critical services in demanding buildings and industrial facilities. Product Overview NH-YJV is a low-voltage copper core power cable with
