Gefunden 90 Produkte für "
flexible medium voltage cable
"

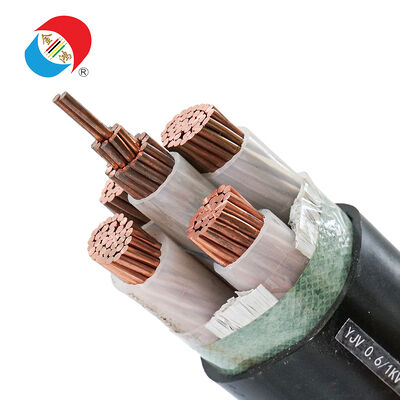

YJV Mittelspannungs-Stromkabel Standard Kupferleiter, XLPE Isoliert für Vielseitigkeit
Superior performance to meet critical power needs: YJV medium-voltage cables! Utilizing high-quality oxygen-free copper conductors for excellent conductivity, coupled with high-quality cross-linked polyethylene (XLPE) insulation, they achieve stable power transmission from 3.6/6kV to 26/35kV. Excellent heat dissipation, aging resistance, and moisture resistance make them ideal for industrial plants, urban power grids, high-rise buildings, and critical infrastructure.
Kostenwirksames MV-Pantarkabel für allgemeine Mittelspannungstromkreise
YJV22 8.7/15kV 3×95mm² The YJV22 8.7/15kV 3×95mm² is a three-core medium-voltage armored cable widely used in standard 10kV AC power systems. It has a rated voltage of 8.7/15kV and a maximum system voltage of 17.5kV. It features a compact stranded high-purity copper conductor, multi-layer semi-conductive shielding, thickened cross-linked polyethylene (XLPE) insulation, copper tape metal shielding, a PVC inner sheath, double-layer hot-dip galvanized steel tape armor, and a
Hochfestigkeit YJV22 Mittelspannungsanzugskabel Kupferkern für Stromnetze und Projekte der Schwerindustrie
YJV22 6/10 kV medium-voltage armored cable YJV22 6/10 kV medium-voltage armored cable is specifically designed for three-phase AC medium-voltage power systems and is a key component for medium-capacity, medium-distance power transmission and distribution. This cable fully complies with internationally recognized electrical standards such as IEC 60287 and IEC 60840, and can withstand high electric field stress, severe mechanical shock, and complex environmental conditions.
Mit Stahlband gepanzertes MV-XLPE-Kabel für Transformatorstationen und industrielle Mittelspannungsverteilung
1. Compliant with global and domestic standards, and possesses a comprehensive certification system This three-core YJV22 8.7/15kV 3×95 medium-voltage cable is manufactured entirely in accordance with the Chinese national standard for medium-voltage power cables GB/T 12706.3-2020, and fully complies with the IEC 60502-2 international standard for 6kV~35kV distribution cables. It has passed EU CE LVD and EMC directives, meeting the inspection requirements for cross-border
Mittelspannungs-LSZH-XLPE-Kabel mit doppelter Stahlbandpanzerung | Unterirdisches, direkt vergrabenes, pannensicheres MV-Kabel für industrielle Eingangs- und städtische Netznachrüstungen
WDZ-YJY23 is a medium-voltage, low-smoke, halogen-free, double-stainless steel-tape armored power cable with a rated voltage of 8.7/10kV. It features a compact copper conductor, XLPE high-voltage insulation, LSZH inner lining, double-layer overlapping galvanized steel tape armor, and an HDPE corrosion-resistant outer sheath, forming an integrated composite structure. Positioned as an economical, standard buried medium-voltage cable, it fills the application gap between the
Mittelspannungs-Flammhemmer XLPE Stahlband Panzerkabel für Brandgefahr Industriepark, städtische Rohrleitung & Schwerlasttransformatorverteilung
1. Standard Implementation and a Comprehensive Medium-Voltage Fire Safety Certification System The ZR-YJV22 8.7/15kV flame-retardant cross-linked polyethylene steel tape armored medium-voltage cable strictly adheres to the national standard GB/T 12706.3-2020 "6kV~35kV Medium-Voltage Power Cables". Its flame-retardant performance meets the GB/T 19666 bundled flame-retardant rating specification, fully complies with the international IEC 60502-2 medium-voltage cable standard,
8.7/15kV WDZ-YJY23 Doppelstahlband gepanzertes LSZH-Mittelspannungs-Stromkabel für Unterstation, Tunnel und direkte Stromübertragung
A detailed model breakdown for medium-voltage design engineers, tender estimators, and procurement specialists to facilitate the quick identification of structural and electrical characteristics: Model Breakdown WDZ: Low-smoke, zero-halogen (LSZH), flame-retardant type; flame-retardant grades (WDZA, WDZB, or WDZC) can be customized based on fire safety design requirements. YJ: Cross-linked polyethylene (XLPE) primary insulation, offering excellent resistance to medium-voltage
Schweres Niederspannungskabel perfekt für Steuerungen und elektrische Geräte, die eine konstante Stromversorgung benötigen
JKYJ Medium Voltage Fixed Laying Power Cable JKYJ is a robust and durable medium-voltage stationary power cable designed for commercial, industrial, and utility power transmission and distribution systems worldwide. Featuring a multi-layered semi-conductive shield, high-purity cross-linked polyethylene insulation, and a durable outer sheath, this cable covers a full range of medium-voltage classes from 6kV to 35kV and is available in both copper and aluminum core configuratio
Stahlband gepanzerte Mittelspannung XLPE-Stromkabel für die Übertragung von Unterstationen und industriellen Hauptnetzen
1. Global and National Compliance Standards This YJV22 medium-voltage cable is manufactured entirely in accordance with the national standard GB/T 12706.3-2020 for medium-voltage power cables, fully complies with international standard IEC 60502-2, and meets European CE LVD and EMC directives, making it suitable for cross-border engineering export projects. All finished cables have undergone comprehensive testing by a third-party type testing organization recognized by the
